C-12 / Appendix C - Hardware Installation Guide

CI-ControlWave EFM

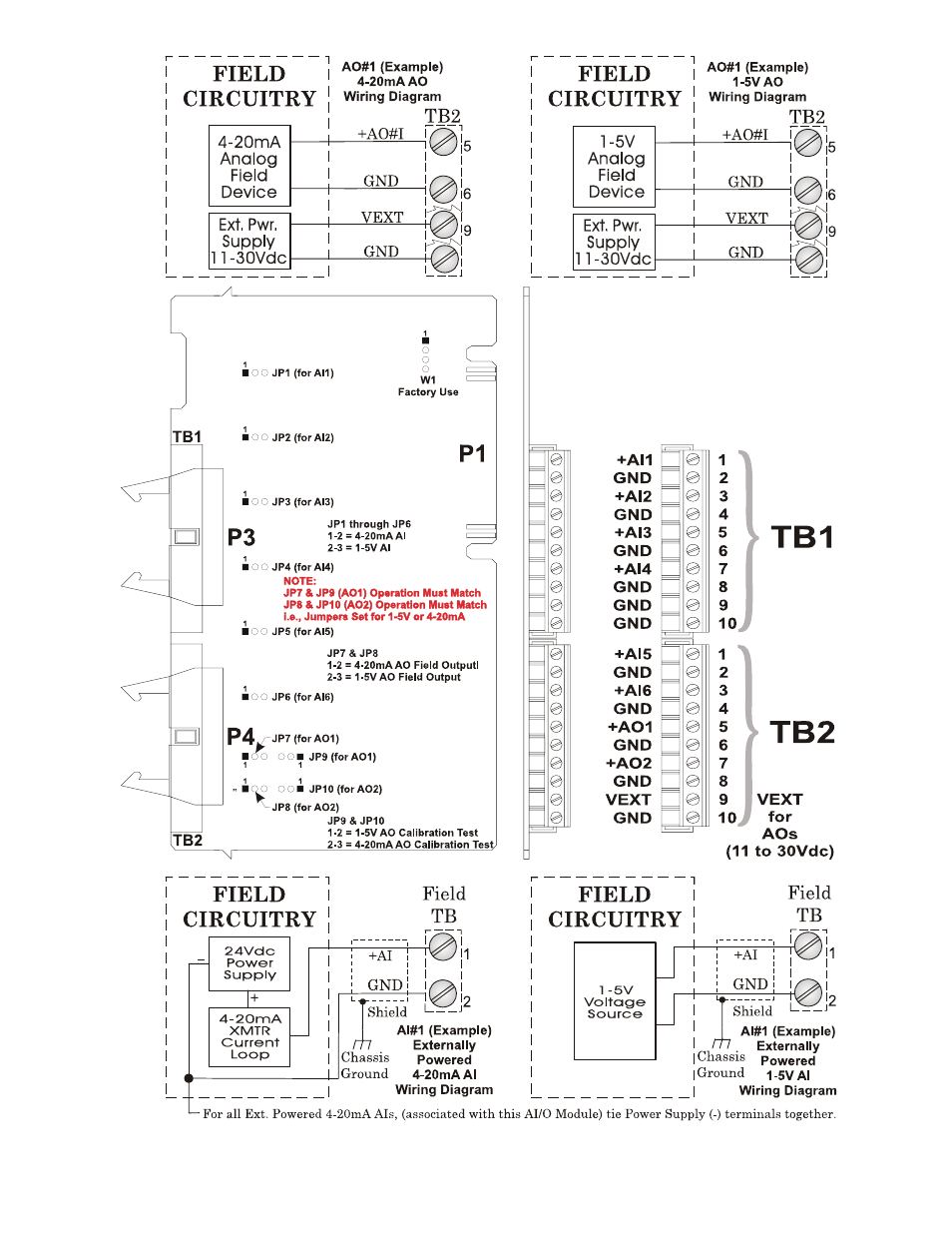

Figure C-7 - Non-isolated AI/O Module Configuration Diagram
