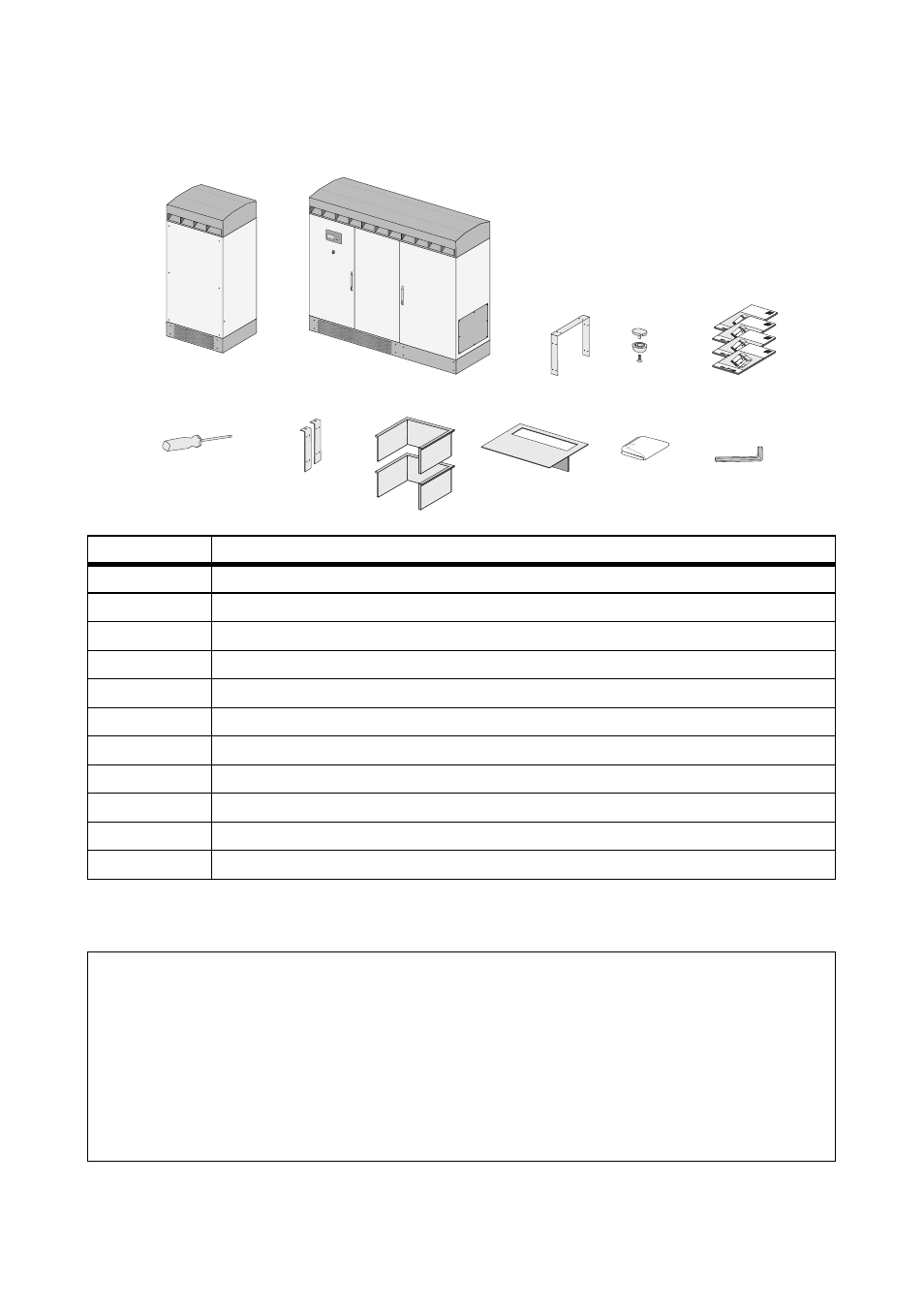

4.2 Scope of Delivery
4.3 Storage
Position Description
A Magnetics Cabinet
B Interface and Control Cabinet
C Cover for the cables between the cabinets of the Sunny Central and screws
D Condensate drain
E Installation Guide, User Manual, Circuit Diagram, Test Report
F Torx screwdriver
G Sealing splints
H U-shaped plate
I Ventilation plate with air filters for installation in the base of the Sunny Central
J Non-woven abrasive
K Allen key
NOTICE
Improper storage can cause moisture to seep into the Sunny Central.
Damage to the Sunny Central.
• The Sunny Central must be closed during storage.
• If stored for 6 months or longer, make sure the storage area is dry.
