Definin
g
Cont
ou
rs

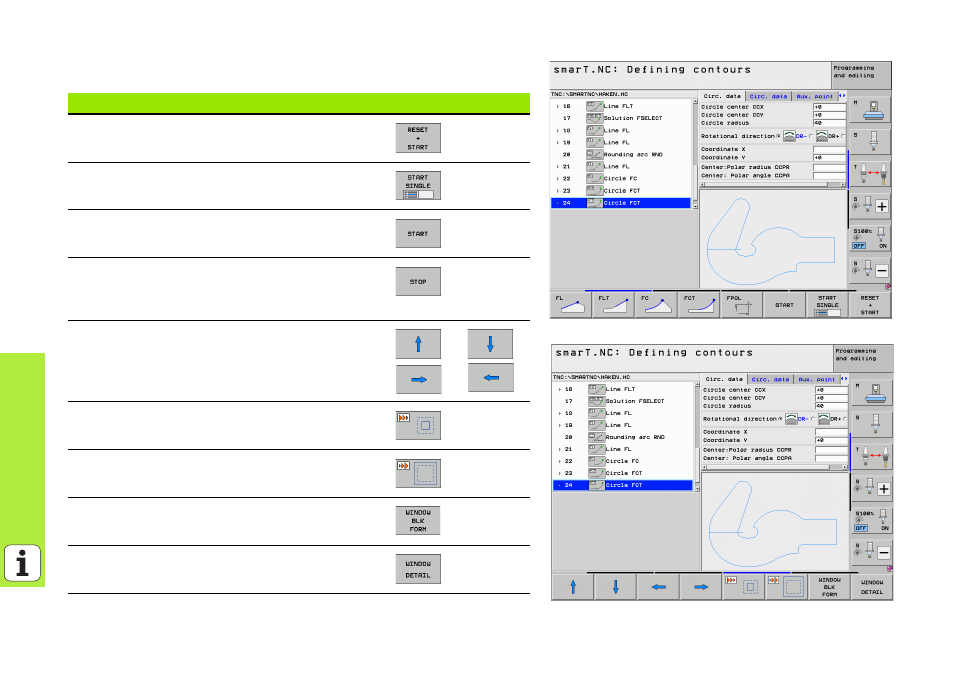

Functions of the programming graphics
Function Soft key
Generate a complete graphic
Generate programming graphic blockwise
Generate a complete graphic or complete it after
RESET + START
Stop the programming graphics. This soft key
only appears while the TNC is generating the
interactive graphics.
Zoom function (third soft-key row): Show and
move the frame
Zoom function: Reduce the section. Press the
soft key repeatedly for further reduction.
Zoom function: Magnify the section. Press the
soft key repeatedly for further magnification.
Restore original section
Select marked area
