115
Definin
g
Mac
hin
ing Oper
ation
s

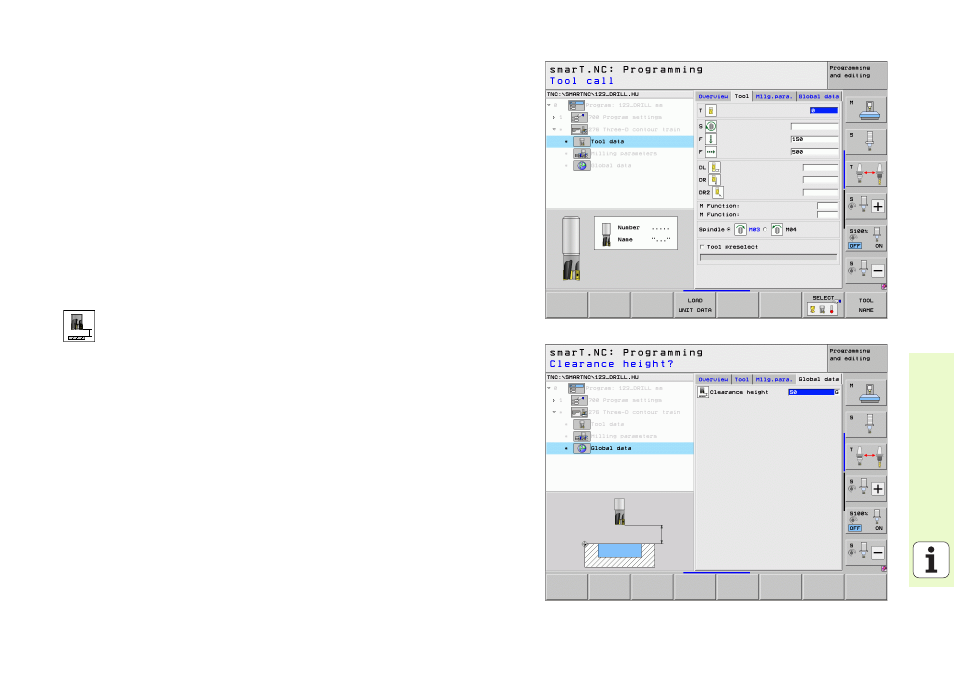

Additional parameters on the tool detail form:
U DL : Delta length for tool T
U DR : Delta radius for tool T
U DR2 : Delta radius 2 (corner radius) for tool T
U M function : Any miscellaneous function M
U Spindle : Direction of spindle rotation. As a default, smarT.NC sets M3
U Tool preselect : If needed, this is the number of the next tool for faster
tool change (machine-dependent)
Additional parameters on the milling parameters detail form:
U None.
Globally effective parameters on the global data detail form:
U 2nd set-up clearance
