25
Wiring the power connector
The MSE 1202 includes a female M8 connector (ID 1071955-01) that needs to be wired to
a suitable power cord; see “Power cord” on page 24. Replacement connectors can be
purchased from HEIDENHAIN.
To wire the power connector:
X X Verify that the power cord is not plugged into the main power supply
X X Wire the power connector according to the illustration on the right
Connecting a power cord
To connect a power cord:
X X Verify that the power cord is not plugged into the main power supply
X X Align the cable connector with the module connector
X X Insert the power cord connector into the power connector 5 on the front of the
module
X X Hand tighten the M8 connector onto the module
7. Initial power­up
To power-up the system:
X X Turn power on for the system

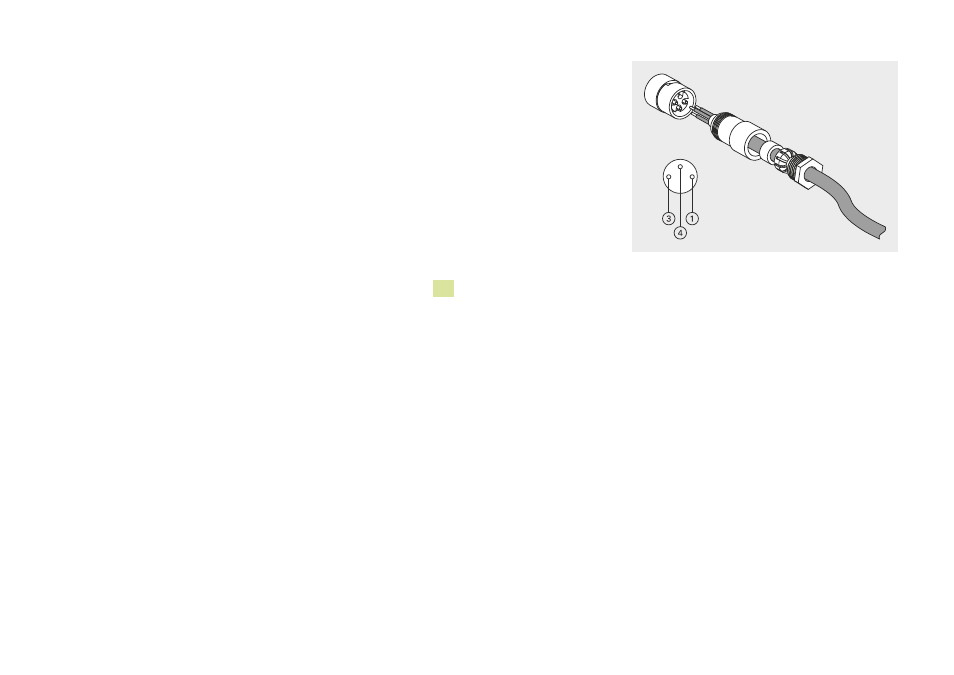

Wiring the M8 power connector
