Mounting a module
Notice
A power supply module must always be to the left of any modules it is
powering in the module chain. Once the maximum power consumption rating
of a power supply module is reached, install another power supply module into
the module chain.

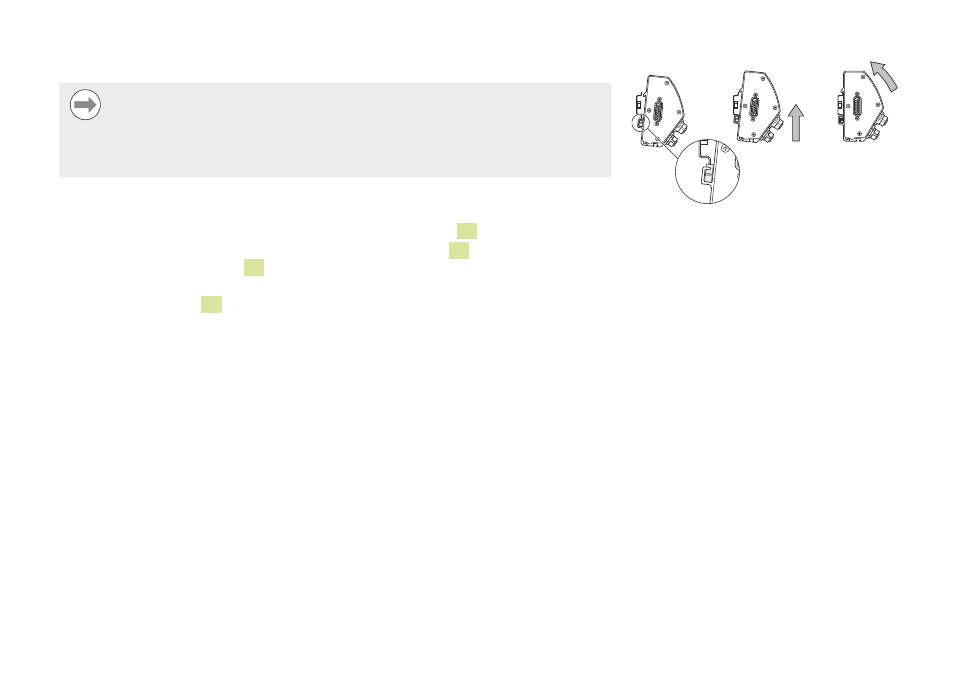

To mount a module:
X X Verify power is removed from all power supply modules in the module chain
X X Align the bottom edge of the DIN rail with the bottom channel 12 of the module
X X Gently apply upward pressure, depressing the DIN rail spring 11 and inserting the DIN
rail into the bottom channel 12 of the module
X X While maintaining upward pressure, rotate the top of the module towards the DIN rail
until the top channel 10 of the module is aligned above the DIN rail
X X Gently release the upward pressure, locking the module onto the DIN rail
Mounting a module
