6. Installation
The safety of any system incorporating the use of this product is the
responsibility of the assembler or installer of the system.
Notice
Do not engage, or disengage any connections while the unit is under power.
Damage to internal components may result.
Electrical connection
Warning! Risk of electrical shock
A risk of electrical shock exists if this product is not properly grounded.
To avoid the hazard, always use a 3-conductor (grounded) power cord and
ensure the ground is properly wired to the building installation.
Warning! Risk of fire
A risk of fire exists if a power cord not meeting minimum specifications is
used.
To avoid the hazard, always use power cords that meet the specifications listed
in the Power cord table on the right.
Interfaces
1
Power indicator LED
2
Network indicator LED
4
F2: Replaceable fuse holder
5
X120: Power connector
7 15 Module connectors

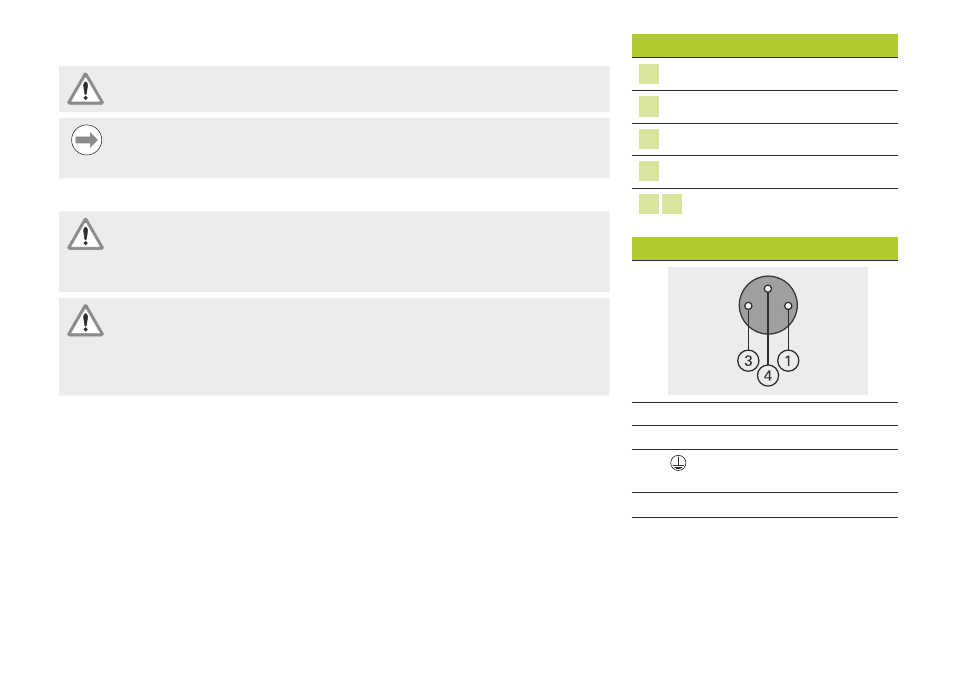

Power cord
1 DC 24 V
3 0 V
4 Protective conductor (ground)
terminal
Min. wire cross section: 0.24 mm
2
Max. wire cross section: 0.35 mm
2
