22

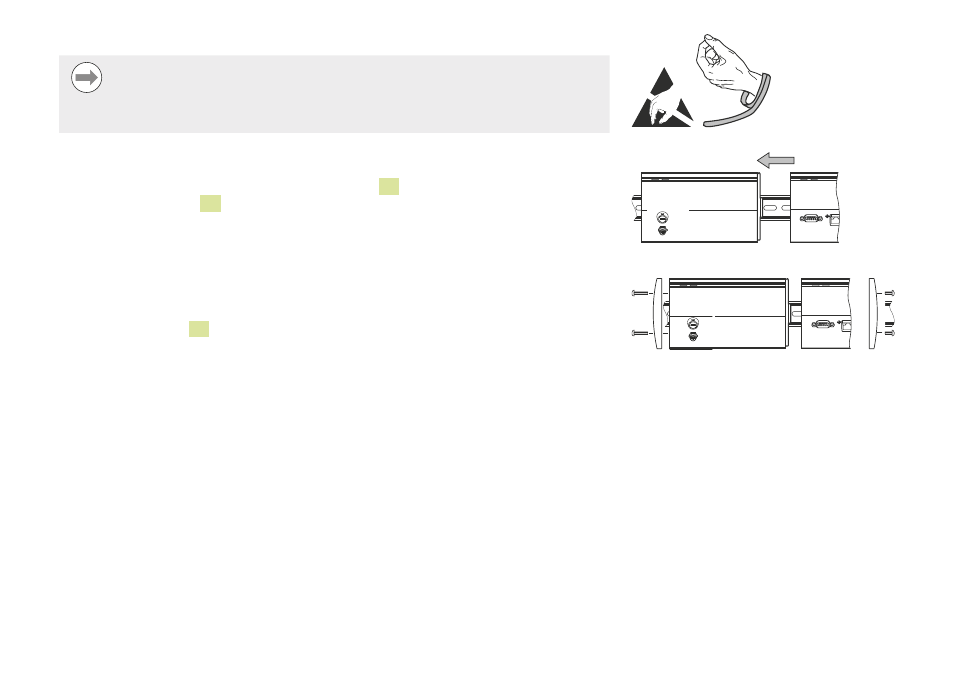

Connecting modules
Notice
This product contains components that can be damaged by electrostatic
discharge (ESD) . Observe precautions for handling ESD sensitive devices and
never touch connector pins unless properly grounded.
To connect modules:
X X Verify power is removed from all power supply modules in the module chain
X X Slide the right module to the left until the lock tab 6 of the left module engages with
the lock tab receiver 8 of the right module
Installing end covers
Left and right end cover kits are provided with each power supply module for covering
open module ends.
X X Insert the left end cover into the left side of the first power supply module in the chain
X X Insert 19 mm end cover screws through the end cover mounting holes and into the end
cover screw holes 14 on the module
X X Using a cross-head screwdriver, tighten the screws
X X Install the right end cover onto the right side of the last module in the chain using the
provided 9 mm screws and following the instructions given above
Connecting modules
Observe ESD handling precautions
Installing end covers
