8943RDA/-D/-DFR — Instruction Manual
75
Configuration

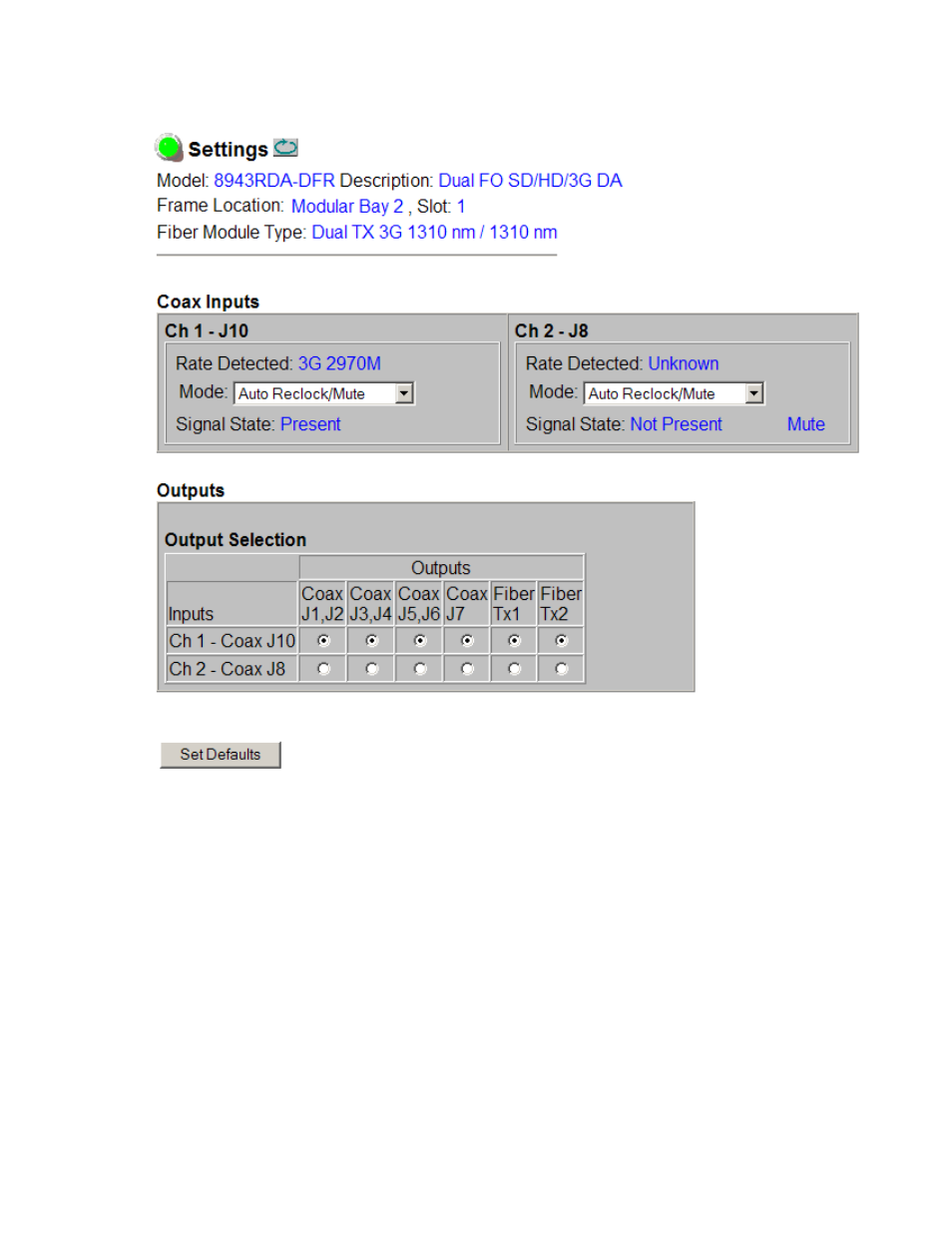

Figure 38. 8943RDA-DFR Settings Web Page with Dual Transmitter Fiber Submodule
Jumper J13 on the module circuit board
must be set to enable the TX1 and Tx2 out-
puts. Refer to
.
