8943RDA/-D/-DFR — Instruction Manual
39
Configuration
An example of the Newton Configurator is shown in
control parameters are given in

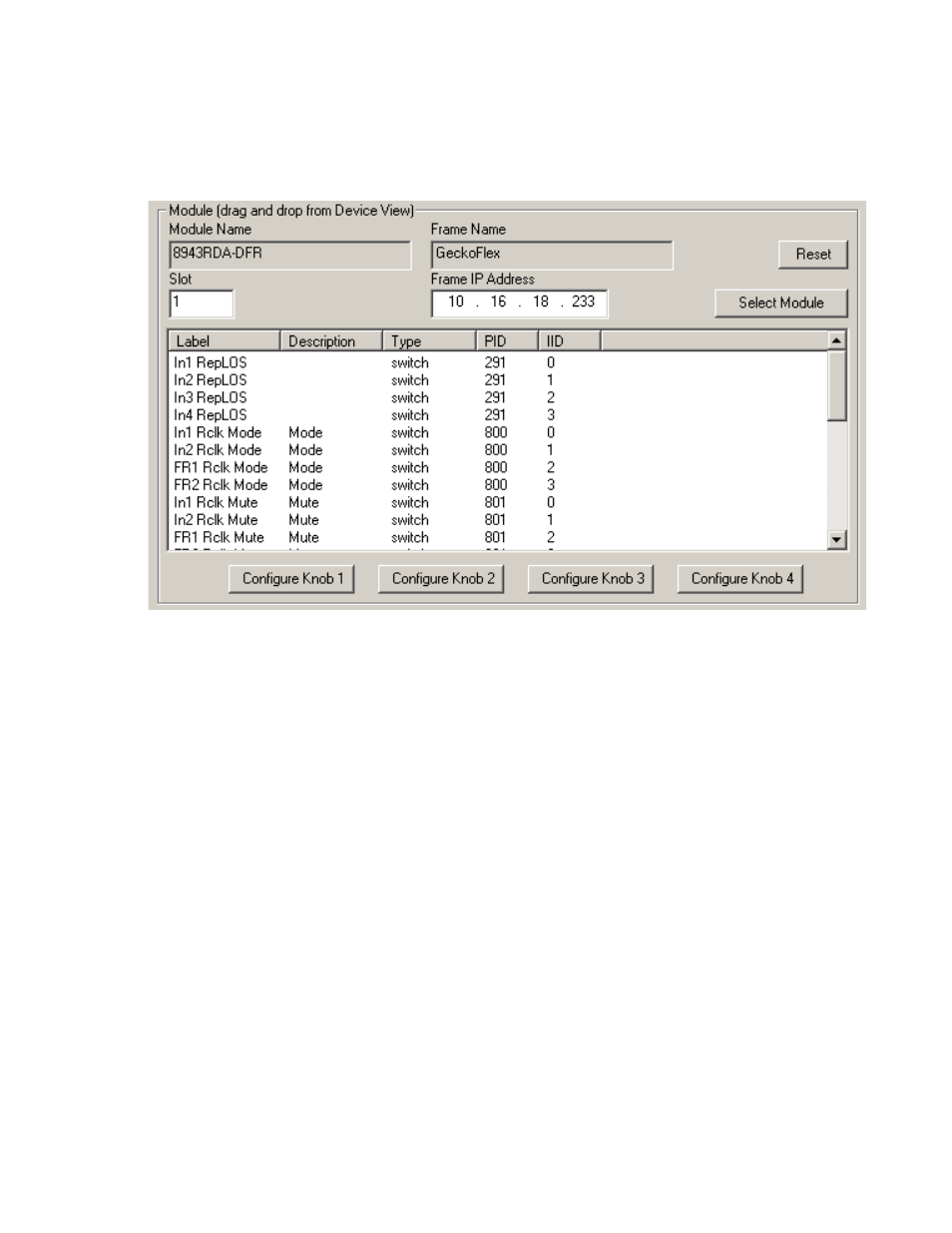

Figure 16. Newton Configurator Example
Web Browser Interface
The web browser interface provides a graphical representation of module
configuration and monitoring.
Use of the web interface offers the following considerations:
•
Web access will require some normal network time delays for pro-
cessing of information.
•
Configuration parameter changes may require pressing
Apply
button or
Enter
, upload processing time,
and a manual screen refresh to become
effective.
•
Web interface recommended for setting up module signal and slot
names, and reporting status for SNMP and monitoring.
Refer to the Frame Status web page shown in
. The
8900 modules can be addressed by clicking either on a specific module icon
in the frame status display or on a module name or slot number in the link
list on the left.
