Page 49
Repair Procedures: The Auger
Turn off the water to the machine, and unclip the
evaporator drain hose, pull it down and drain the
evaporator into the bin or a container.
1. Remove the the top panel.
2. Remove ice chute cover.
3. Unscrew ice sweep.
4. Remove ice chute body.
5. The auger and breaker/bearing may now be
removed as an assembly.
• a. Unscrew 4 allen head cap screws holding breaker
to evaporator.
• b. Lift up on breaker and remove auger from
evaporator.
Note: If the auger is stuck, the breaker must be
removed from the auger.
The breaker may be removed from the auger and
evaporator without disturbing the auger.
• a. Unscrew breaker cover from breaker (left hand
threads)
• b. Unscrew auger stud from top of auger.
• c. Unscrew 4 allen head cap screws holding breaker
to evaporator.
• d. Lift up & remove breaker from evaporator.
• e. If the auger will not lift up use a slide hammer
type puller to pull on the auger at the threaded hole.
The size of that hole is 5/8"-18.
Inspect the auger, see the next page.

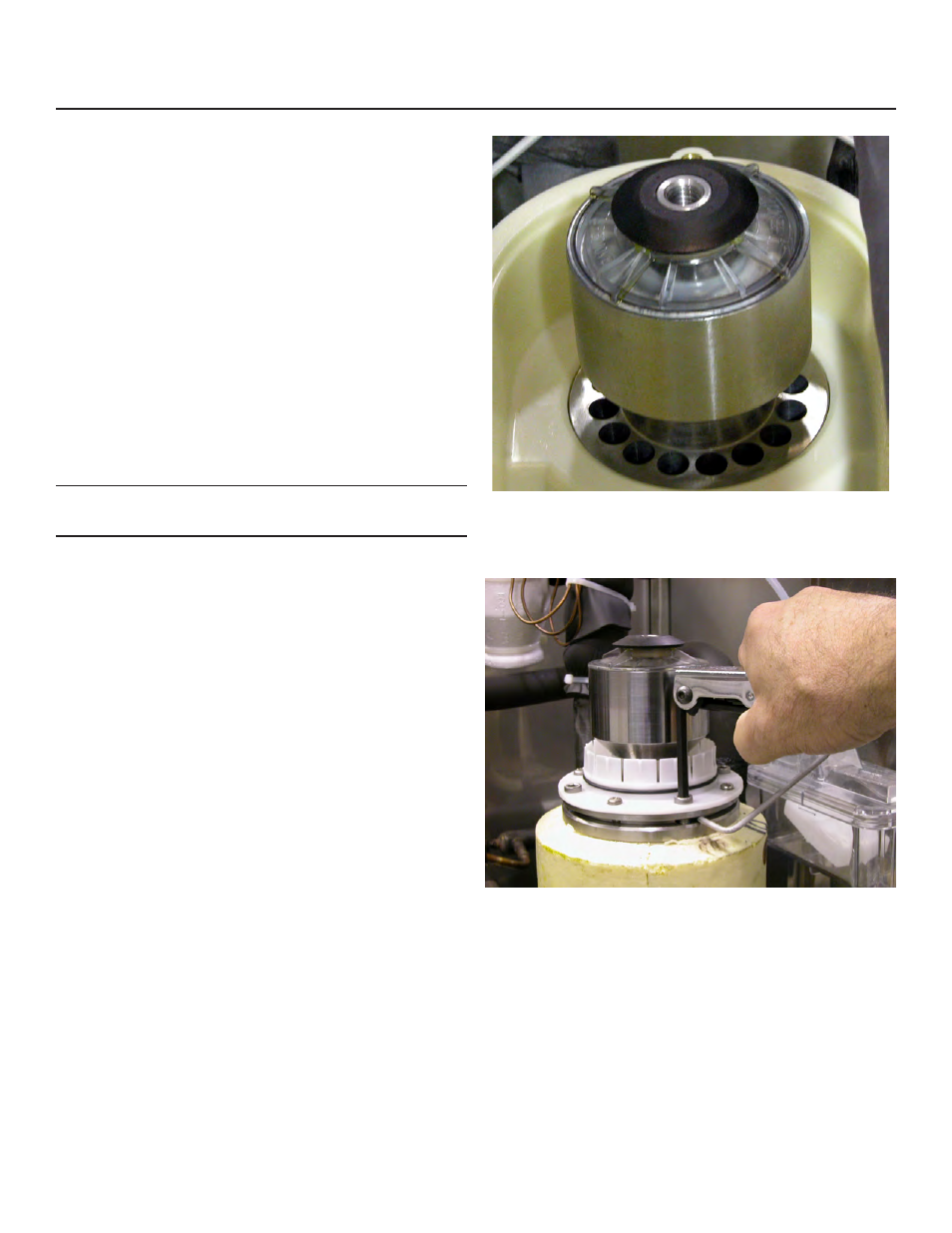

Ice Sweep Removed
Remove allen head cap screws
