OSD OF MAIN SCREEN
P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction.
Camera ID Current Camera ID(Address).
Action Title Followings are possible Action Titles and their meaning.
"SET PRESET ×××" When Preset ××× is stored
"PRESET ×××" When camera reach to Preset ×××
"PATTERN ×" When Pattern × is in action
"SWG ×/PRESET ×××" When Swing × is in action
"UNDEFINED" When undefined function is called to run
Preset Label The Label stored for specific Preset.
Alarm Input This information shows current state of Alarm Input. If an Input point is ON it will show a
number corresponding to each point. If an Input point is OFF, '-' will be displayed.
Example - if points 2 & 3 of inputs are ON, the OSD will show as below:
I:-23-
Image Flip Indicates that images are currently reversed by Auto Flip Function.

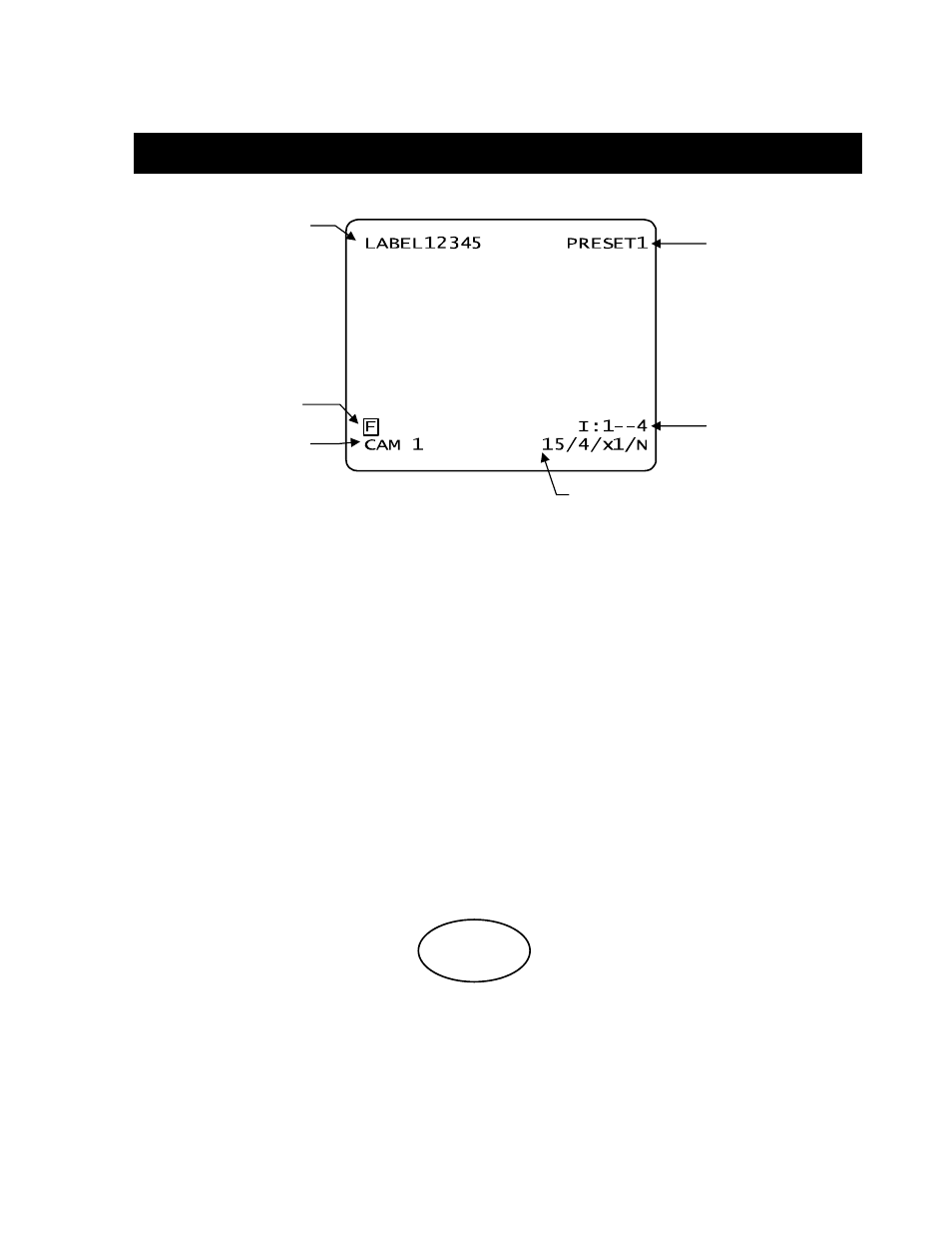

Preset Label
Image Flip
Camera ID
PTZ Information
Alarm Information
Action Title
