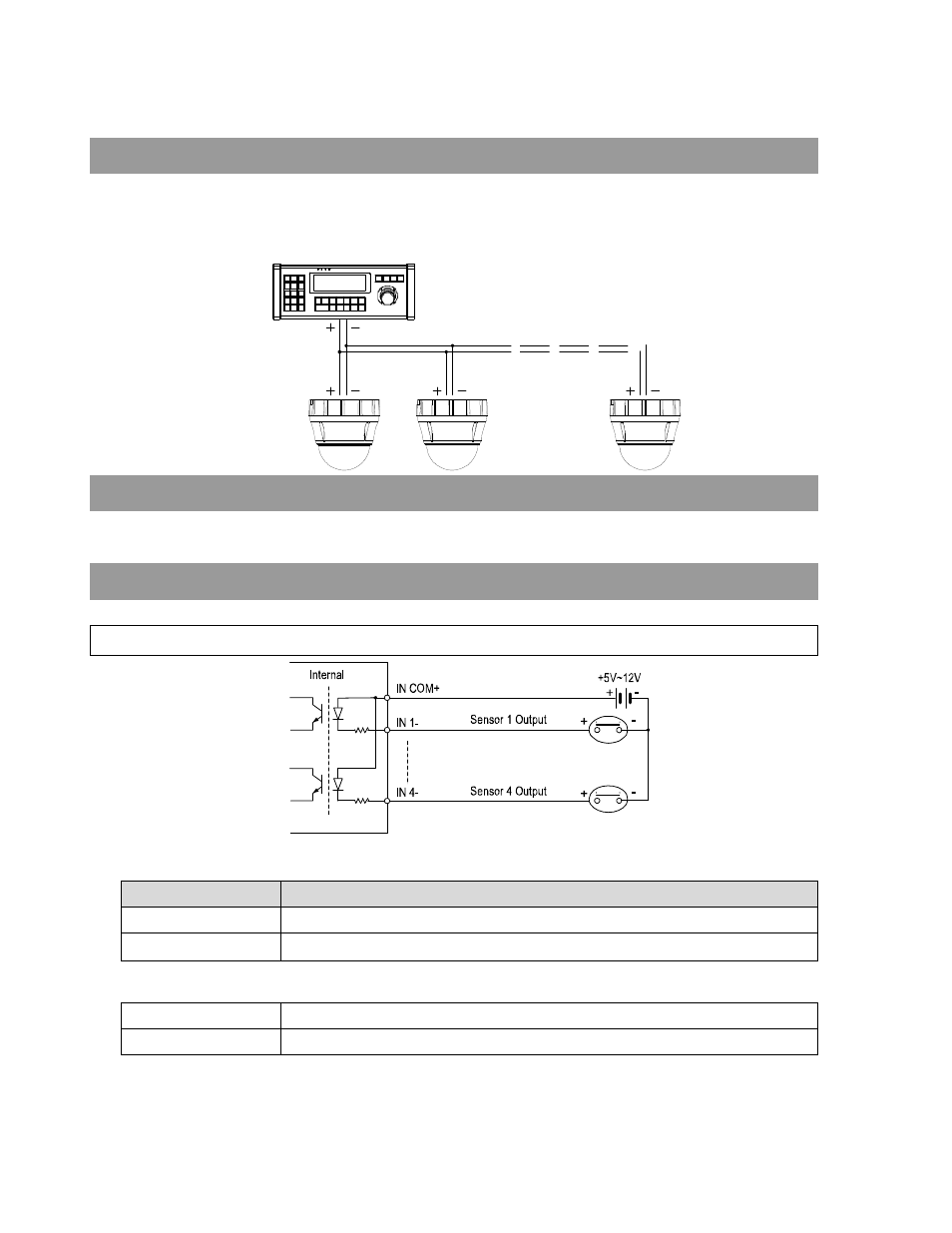

RS-485 COMMUNICATION
• For PTZ control, connect this line to the keyboard and DVR. To control multiple cameras at the same time, RS-485
communication lines to cameras are connected in parallel as shown below.
• OpenEye recommends Category 5 or 6 Twisted Pair Cable for the RS-485 wire
Keyboard Controller/ DVR
RS-485
VIDEO CONNECTION
• Connect with BNC coaxial cable.
ALARM INPUT CONNECTION
Sensor Input
Before connecting sensors, check the sensor driver voltage and output signal type. Since sensor output signal types are divided into
Open Collector and Voltage Output types in general, the cabling must be installed properly depending on the signal type.
Signal Description
IN COM+ Connect (+) cable of electric power source for Sensors to this port as shown in the circuit above.
IN1 −, IN2−, IN3−, IN4− Connect output of sensors for each port as shown in the circuit above.
If you want to use Alarm Input, the type of sensor must be selected in OSD menu. The sensor types are Normal Open and Normal
Close. If the sensor type is not selected properly, alarm activation will occur opposite of what is desired.
~ Normal Open Output Voltage is high state when sensor is activated
~ Normal Close Output Voltage is high state when sensor is not activated
