Ceiling Mounting with Pole
The pole is available in two lengths: 25 cm and 30 cm.
Items Needed:
•
Dome Camera
•
Ceiling Pole Accessory
•
Waterproof Gasket (supplied)
•
Screws and Anchors
appropriate for the mounting
surface (not supplied)
Tools Needed:
•
Drill
•
Screwdriver
Installation Steps:
Note Ensure that the ceiling can support the weight of the dome camera and the
Ceiling Pole.

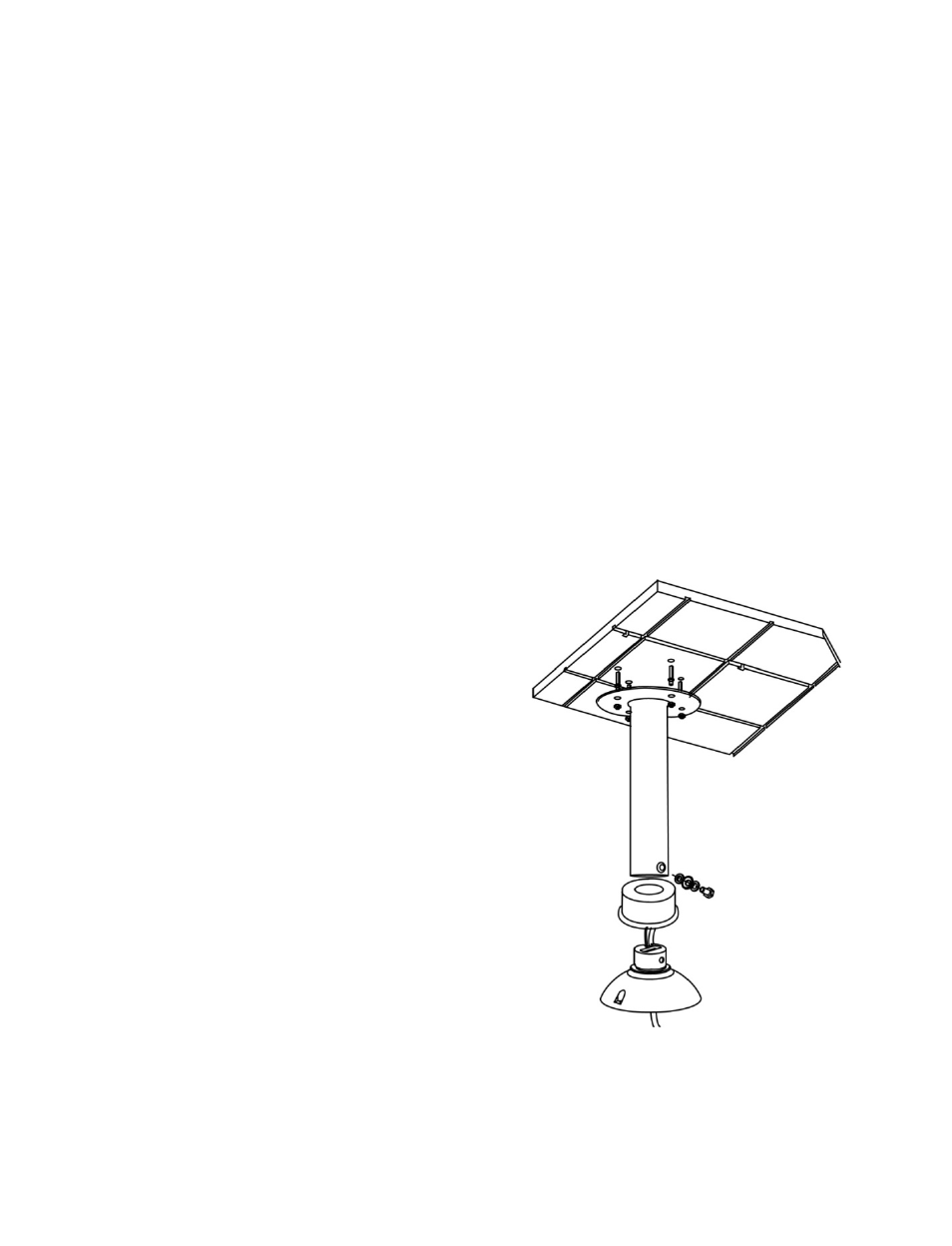

1. Cut a cable access hole in the ceiling.
2. Attach the Ceiling Pole to the ceiling with the appropriate screws and screw anchors
(not provided).
3. Attach the Waterproof Gasket to the
Ceiling Pole.
4. Thread the cables through the Ceiling
Pole and the top holder
Note After threading the cables through
the tube, block the cable entry hole
with the supplied sponges to prevent
insects from entering the tube.
5. Attach the top holder to the Ceiling Pole
with the supplied screws and washers and
adjust the gasket to the junction of the
Ceiling Pole and the top holder.
6. Connect the cables to the dome camera.
7. Attach the dome to the top holder and
secure them with the supplied screw.
