24-port NWay Ethernet Switch User’s Guide
Using the Console Interface
85

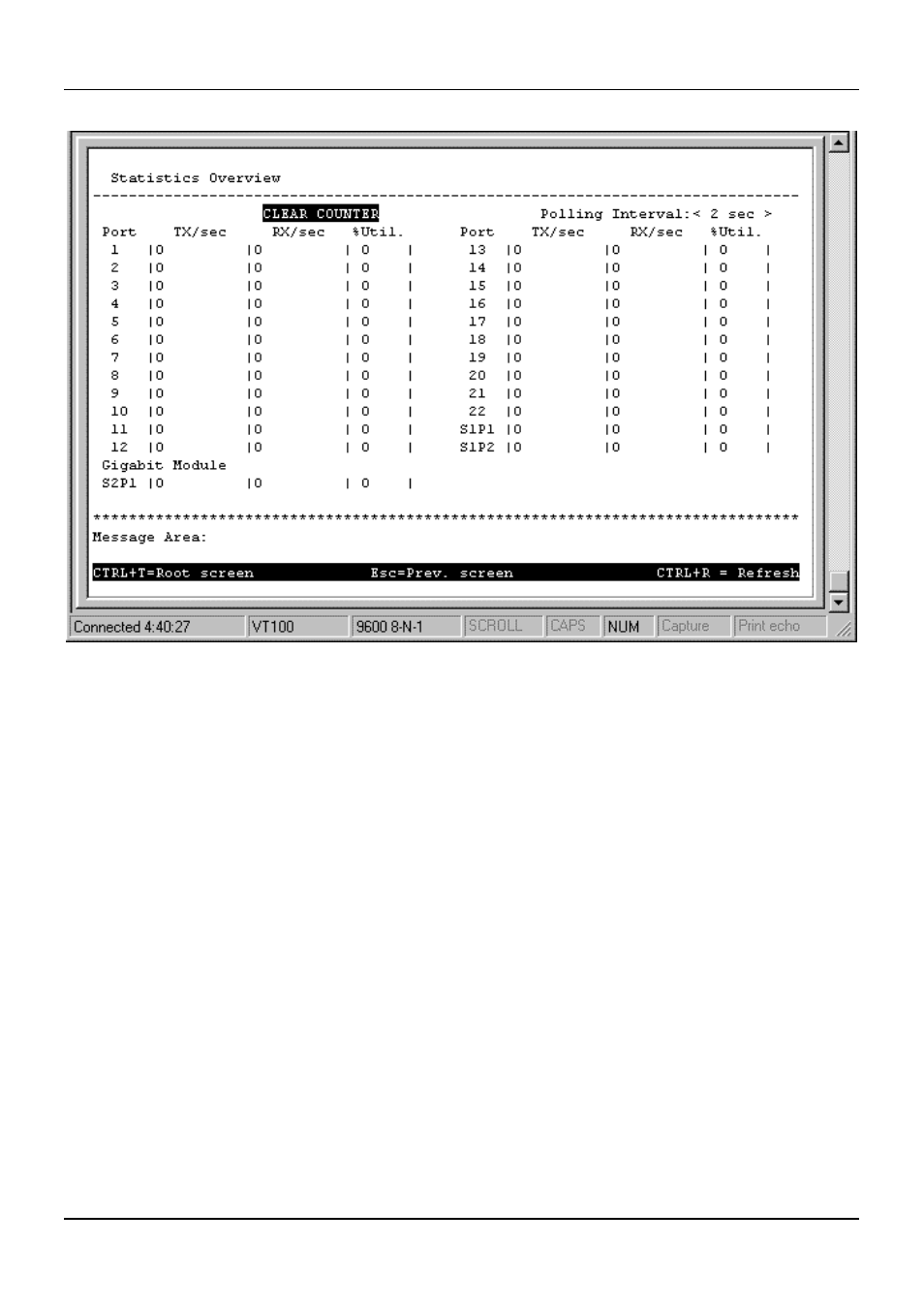

Figure 6-56. Statistics Overview screen
Select the desired increment setting in the Polling Interval field: 2 sec, 5 sec, 15 sec, 30 sec, 1 min, or Suspend.
Pressing CLEAR COUNTER resets the counters on this screen.
The statistic counters displayed are defined as follows:
♦
TX/sec
The number of good bytes sent from the respective port per second.
♦
RX/sec
The number of good bytes received per second. This also includes local and dropped packets.
♦
%Util.
This shows the percentage of available bandwidth each port is using over the amount of time specified by the
update interval. For example, when a 10 Mbps port is relaying packets at 5 Mbps, the utilization is 50%.
Port Traffic Statistics
To access the second item on the Traffic Statistics menu, choose Port Traffic Statistics. The following table
appears:
