D-Link DES-3225G - Manual (Page 130)

24-port NWay Ethernet Switch User’s Guide
120 Web-Based Network Management

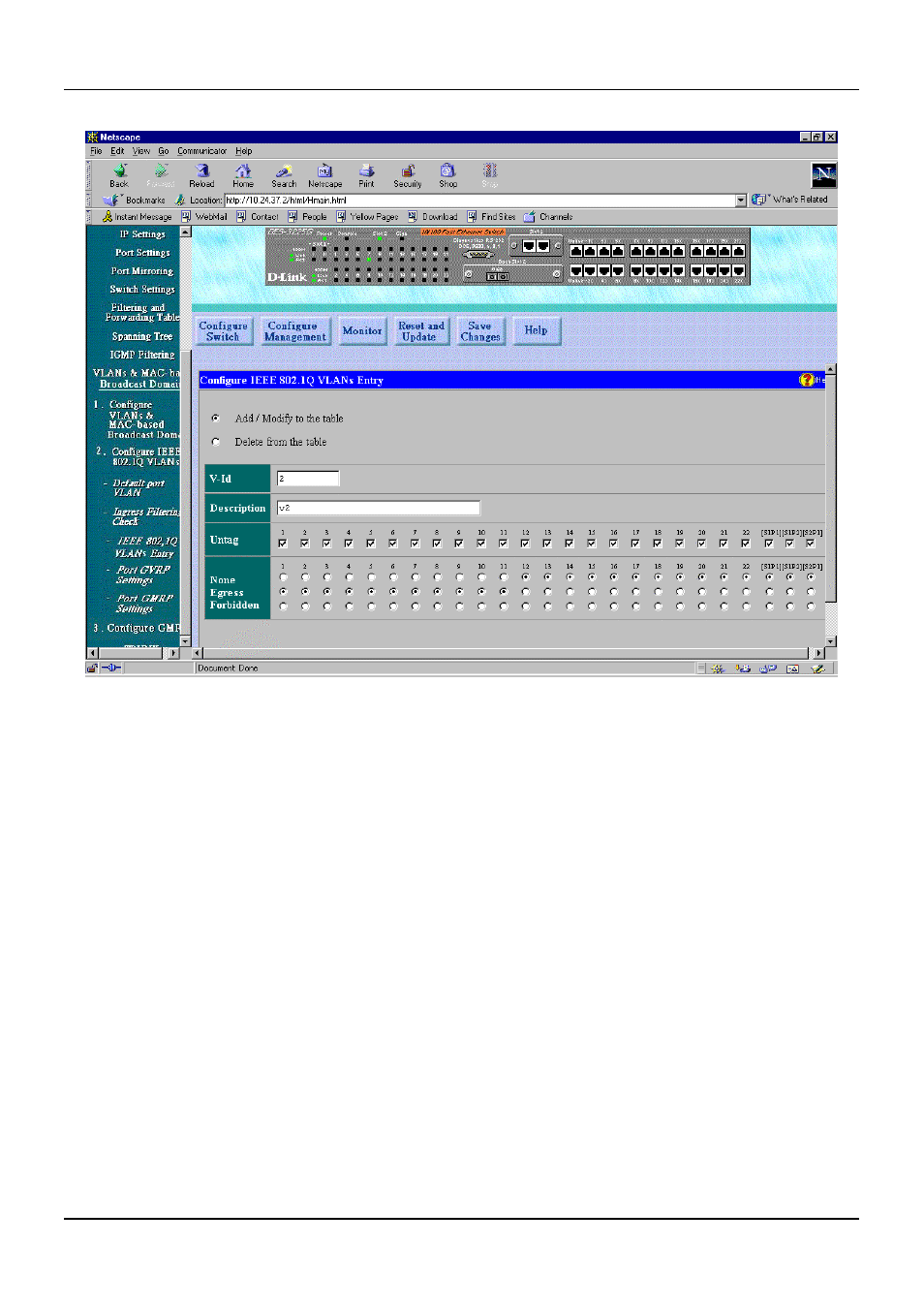

Figure 7-22. Configure IEEE 802.1Q VLANs Entry window
To configure an 802.1Q VLAN entry, check the desired option in the first two lines of the window above and enter a V-Id
number and Description. Next, either check the Untag option, or leave it unchecked for each member port you wish to be a
Tagging port. In the bottom three lines, None should be checked if you don’t want a port to belong to the VLAN.
Otherwise, check Egress to statically set a port to belong to a VLAN or check Forbidden if you wish to forbid the port from
dynamically belonging to the VLAN. Click Apply to let the changes take effect. Please note that this function only applies
to IEEE 802.1Q VLANs mode.
