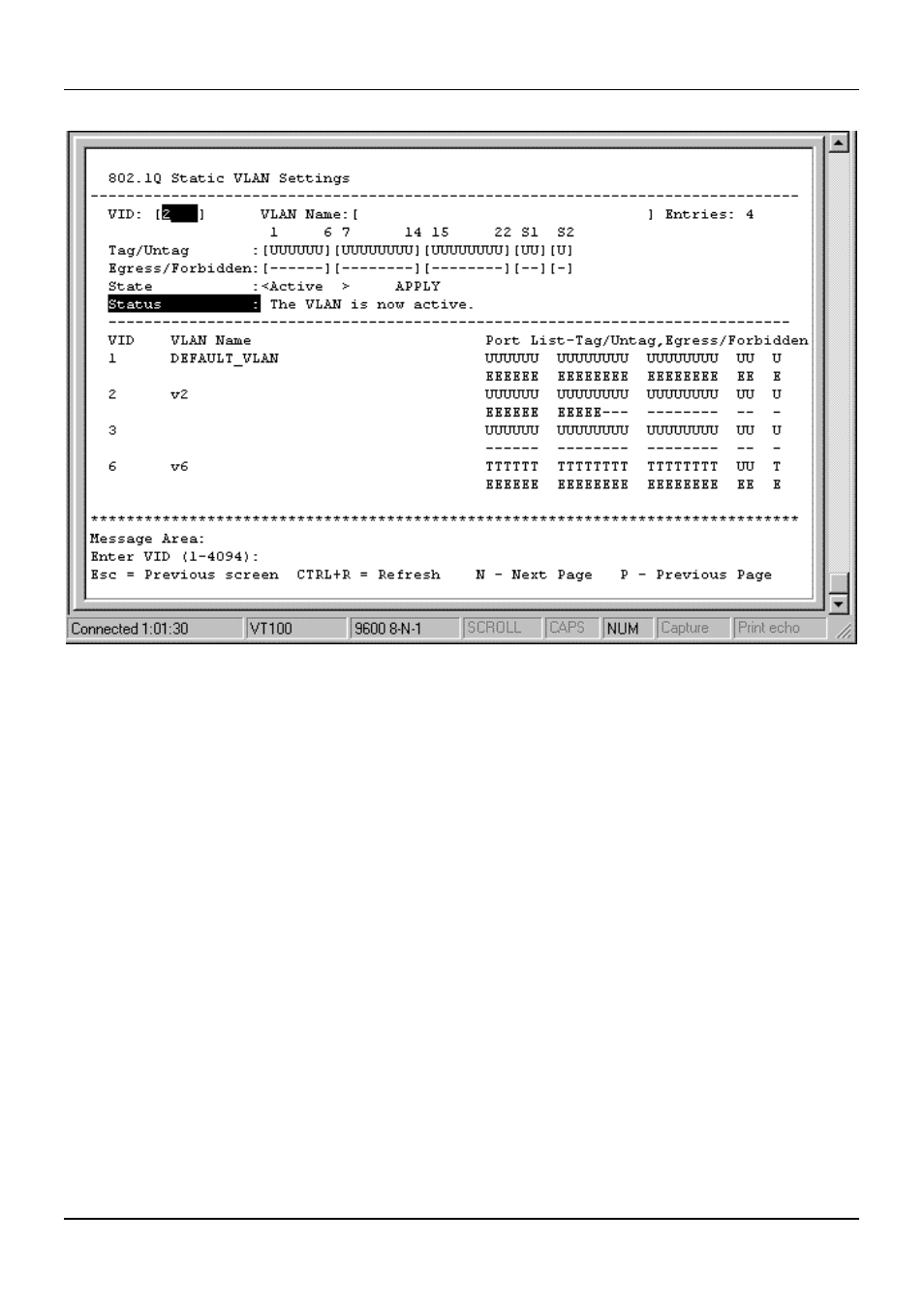

Figure 6-42. 802.1Q Static VLAN Settings screen
The fields you can set are:
♦ VID Enter a VLAN ID from 1 to 4094. This is the VLAN that will be defined on this screen.
♦ VLAN Name Description of the VLAN.
♦ Tag/Untag Toggle between T for tag and U for untag for each port.
♦ Egress/Forbidden Position the cursor over the dash “–“ representing the appropriate port number and press
bar> to select E for Egress, F for Forbidden or leave the dash “–“. An E designates the specified port as a static member
of the VLAN. An F defines the port as a non-member and also forbids the port from joining a VLAN dynamically. A
dash (–) means the port is not given VLAN membership for the VID entered above.
♦ State Toggle between Active and Inactive.
A table on the lower part of the screen displays the settings for each VLAN. The table displays the VLAN number (VID),
VLAN Name, and Tag/Untag and Egress (membership) status for all ports.
Choose Configure Port GVRP Settings to access the fourth item on the IEEE 802.1Q VLANs Configuration
menu. The following GVRP Configuration screen appears:
