Harken 7411.11 1/2 MKIV Jib Reefing & Furling - Manual (Page 51)

MKIV Underdeck Unit 1 45

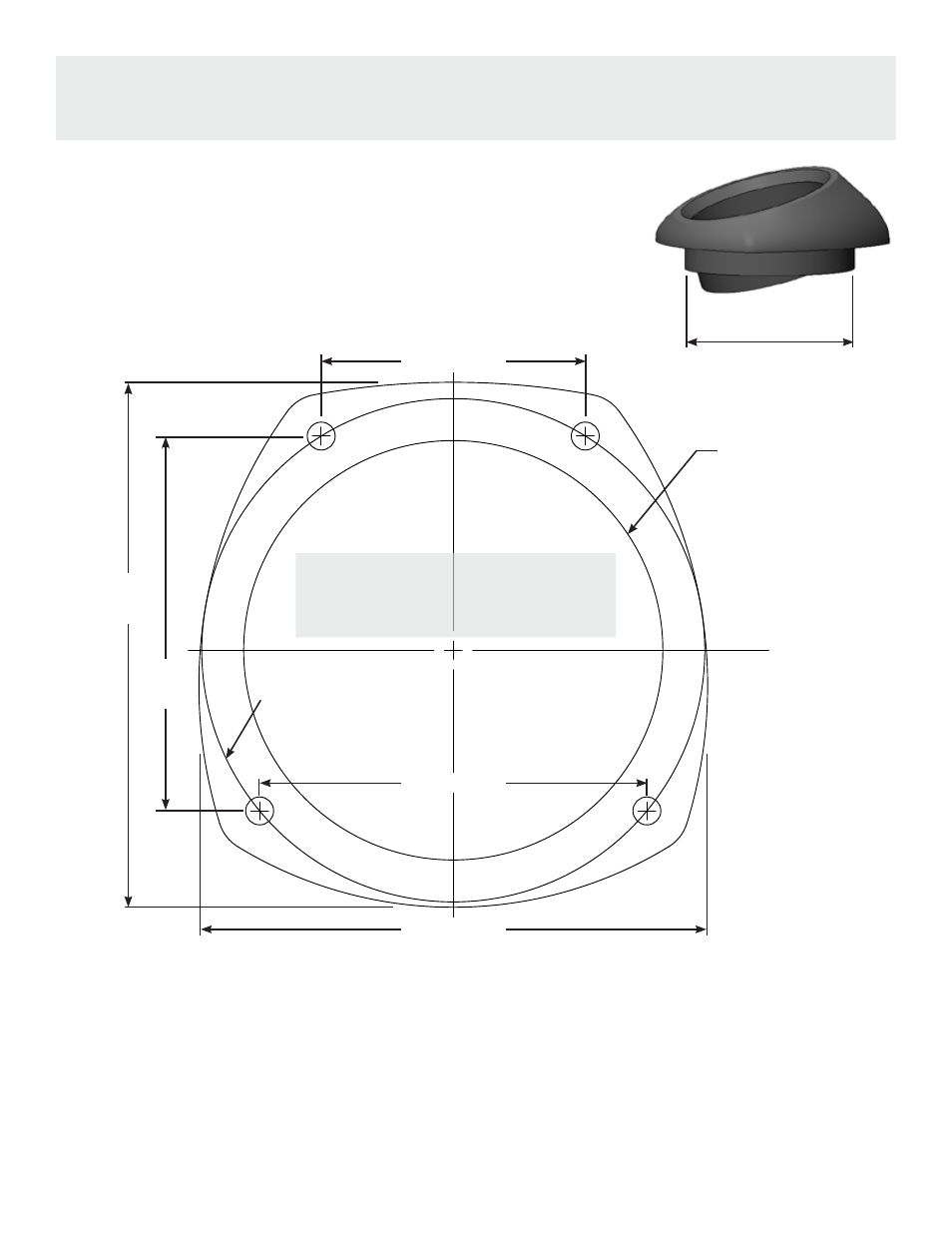

UNIT 1 — Deck Drill Template
BOW
UNIT 1
Deck Drill Template
!
Hole Saw Size
3 3 /
4
" (95mm)
2.362" (60 mm)
3.464" (88 mm)
3.351"
(85.1 mm)
4.54" (115.4 mm)
4.694"
(119.25 mm)
Ø 4.5" (114.3 mm)
Measure this distance to verify
that template printed correctly
Deck Flange Diameter
3.7" (94mm)
IMPORTANT! If you print this template from a computer file, measure
to confirm that template is the correct size before drilling.
