Harken 7411.11 1/2 MKIV Jib Reefing & Furling - Manual (Page 31)

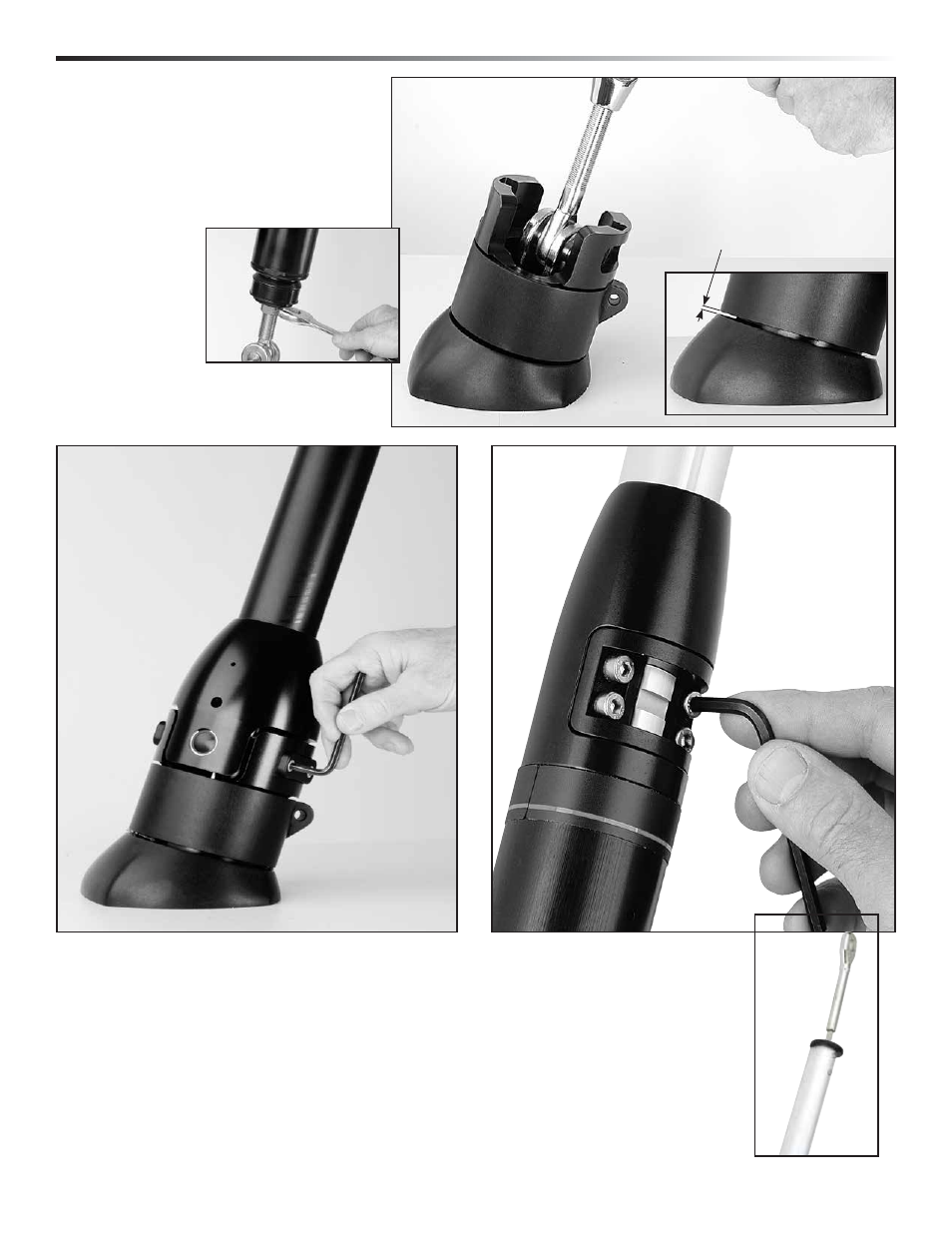

Check foil height at top, set and
secure using hex key.
See tip on next page.
Assembly Attach Turnbuckle/Foil System to Boat
Check to make sure there is a
1
/
16
"–
1
/
8
"
(2–4 mm) gap between the deck flange and
tack swivel. If necessary loosen adjusting
nut below and take up on turnbuckle to
increase gap between deck flange and
tack swivel when turnbuckle is tightened.
Check to make sure
there is a 1 / 16 " – 1 / 8 "
(2–4mm) gap
Loosen foil clamp while holding torque tube assembly
and carefully lower into place.
Note: Do not remove screws, just loosen them.
Capture posts on universal posts with caps and
secure with screws. Do not use Loctite ® on screws.
Tip: If it is hard to capture posts in cap, push against
stay to help align universal. If necessary loosen
backstay.
