Harken 7411.11 1/2 MKIV Jib Reefing & Furling User Manual
Page 26

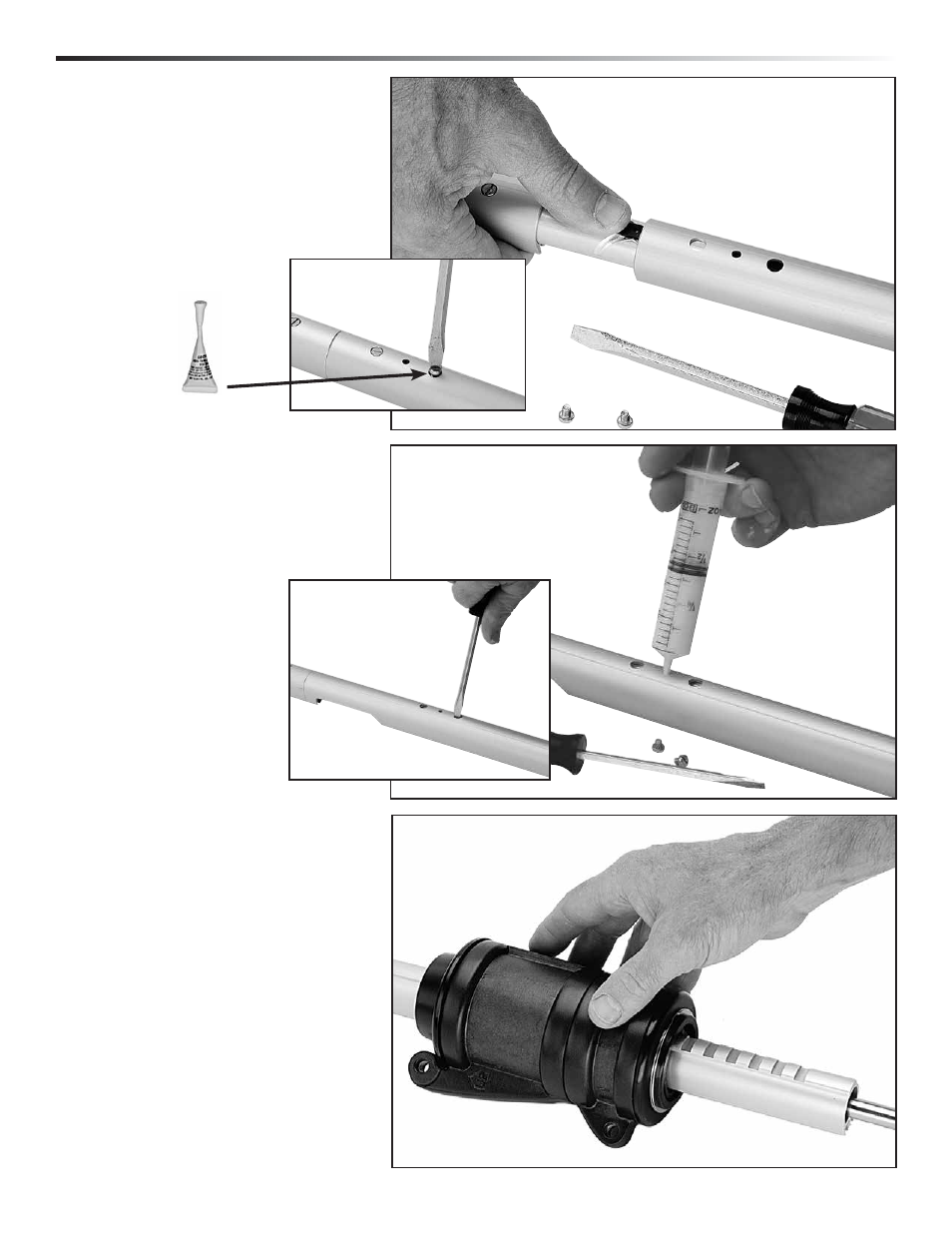

Continue assembly. Use bottom connector
to assemble bottom foil.
Slide halyard swivel onto foil above feeder
window. Make sure taller “half” is up as
shown.
Assembly
Bottom Foil/Connectors/Halyard Swivel
26
MKIV Underdeck Unit 1, 2, 3
Continue installing connectors and wedges.
Make sure to use red Loctite
®
in screw
holes.
Red Loctite
®
