Harken 7411.11 1/2 MKIV Jib Reefing & Furling User Manual
Page 22
Assembly
Top Foil

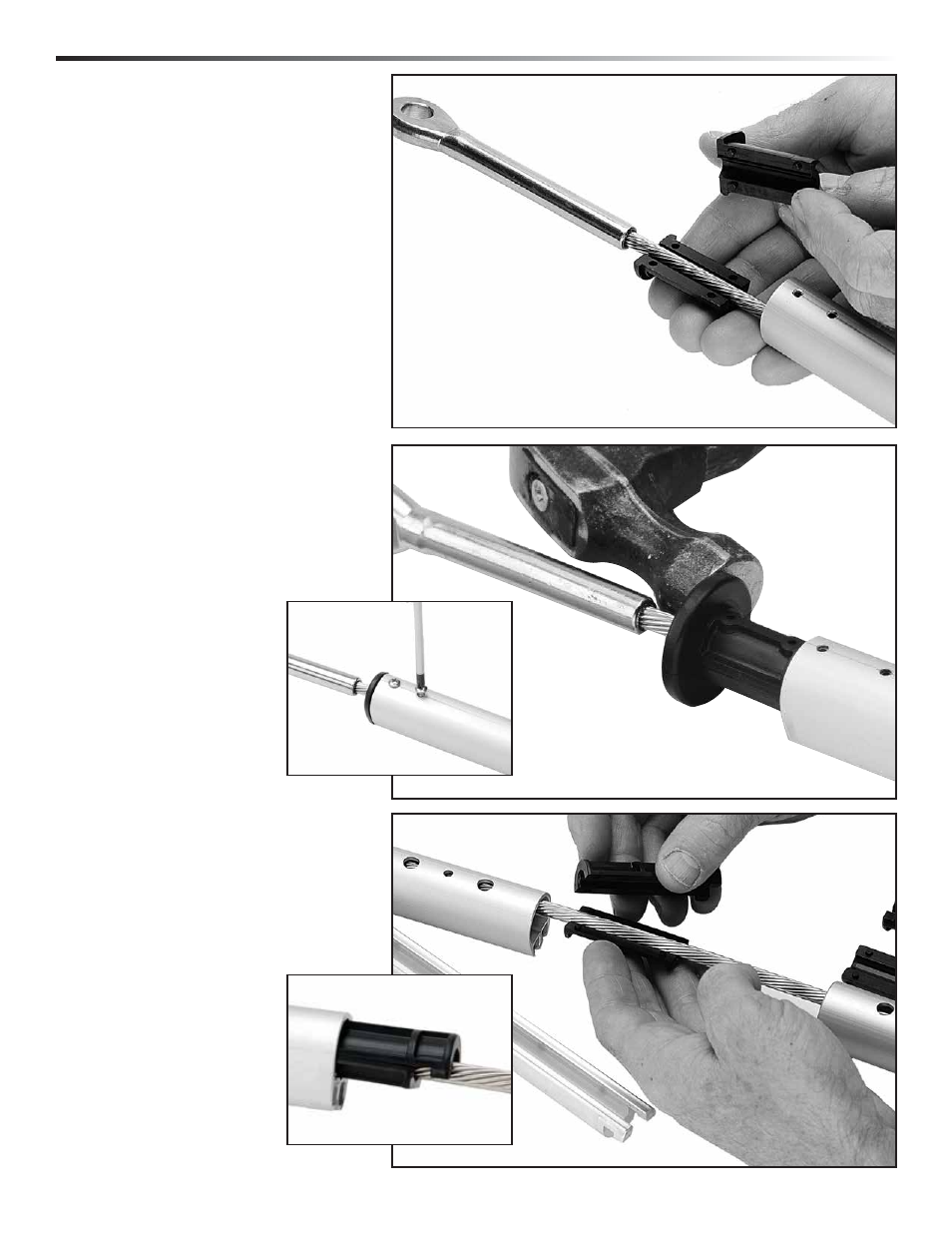

Place halves of plastic bushings on stay so
hooked part of longer section faces out.
Tip: With foil screw holes up as shown
below, place longer half of bushing
with hook on upper half.
Install trim cap. Place each side over wire.
Push trim cap into foil to start, then tap
in using hammer.
Install trim cap screws.
22
MKIV Underdeck Unit 1, 2, 3
