Harken 7411.11 1/2 MKIV Jib Reefing & Furling - Manual (Page 35)

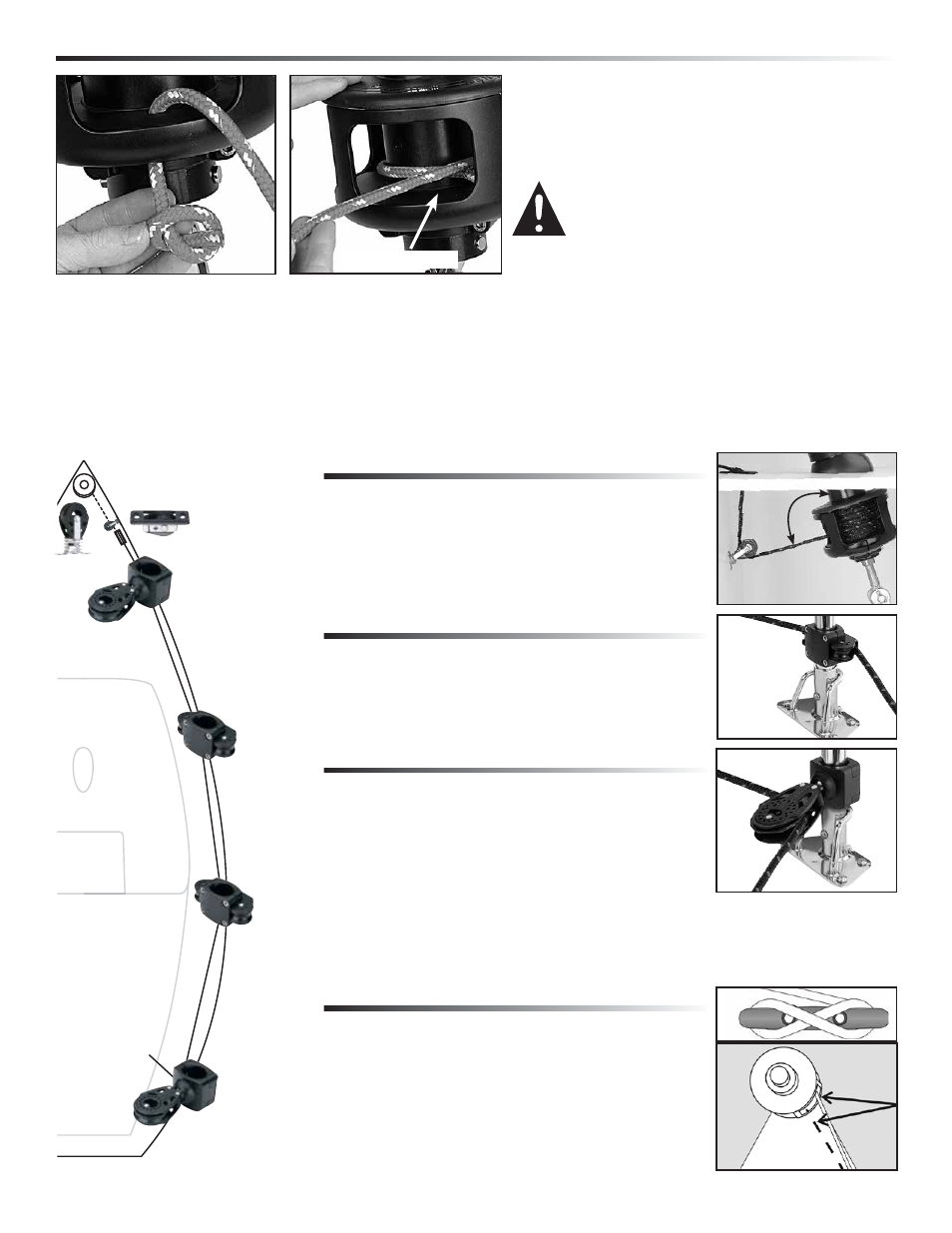

Commissioning Lead Line to Cockpit
MKIV Underdeck Unit 1, 2, 3 35
Note: As furling line lead changes, make sure line
doesn’t chafe against line guard. Rotate line guard
if necessary.
Drum Empty
(sail furled)
Drum Full
(sail unfurled)
Position Forward Lead Block so line enters drum
at right angles to headstay and centers vertically
in opening. Install so line is inside stanchion.
Correct block position is critical to even
line spooling and ease of furling.
7401 Forward Lead Block
Install 7403 Outboard Stanchion Blocks so line is
outside stanchions.
Number and placement of leads depends on boat
length and number/configuration of stanchions.
7403 Outboard Stanchion Blocks
Mount 7402 Ratchet Stanchion Block as furthest-aft
lead to prevent line overrides in drum when unfurling.
Position ratchet block so line turns at least 90°.
Install so line is inside stanchion.
Lead line through block so ratchet makes
clicking sound when pulling line to furl sail.
Tip: Make sure ratchet switch is in “ON” position. If there is
no clicking sound, lead line through block in opposite direction.
Lead line to Furling Line Cleat in cockpit.
7402 Ratchet Stanchion Block
Install so line is angled as shown.
Use #10 (5 mm) fasteners.
HCP168 Furling Line Cleat
Run line through enclosed window in guard and into
hole in bottom plate of spool. Tie a small overhand
knot and pull it up under drum assembly.
Mount Lead Blocks
Furling line can be led down either side of boat. If boat is in slip, consider mounting opposite dock.
Remove four screws on stanchion blocks. Clamp blocks to stanchions. See instructions below.
Tip: Start all four screws before tightening.
STERN
BOW
7401
FORWARD
LEAD
BLOCK
7403
OUTBOARD
STANCHION
BLOCK
WARNING! Lead line through enclosed
window. If line is led through opening
between two enclosed windows it can ride
above lineguard and jam furler which can
cause loss of control of boat.
Note location of sun cover. Charge system by rotating furler to wrap line on drum.
Tip: Sun cover to starboard—turn clockwise to charge. Sun cover to port—turn counter-clockwise.
Tension line while charging.
Enclosed Window
90°
7402
RATCHET
STANCHION
BLOCK
349 – Unit 1, 2
2652 – Unit 3
088 – Unit 1, 2
131 – Unit 3
7403
OUTBOARD
STANCHION
BLOCK
