Gasboy FuelOmat Payment Terminal User Manual
Page 22
OrPT
Manual
12
2
2
-
-
5
5
.
.
C
C
O
O
N
N
N
N
E
E
C
C
T
T
O
O
R
R
S
S
The OrPT connectors are usually located at the bottom of the module (see Figure 2-5). The
connectors are suitable to the OrPT model, in accordance with its type of communication link. The
OrPT module also requires connection to ground for surge protection.
C
C
A
A
U
U
T
T
I
I
O
O
N
N
When installing the OrPT, make sure to connect the
OrPT to a grounding point.
Three connectors are available:
• Ethernet connector, type RJ-45 10 Mbps
• RS-485 & Power connector (usually not used when installed in Islander Plus/ICR Plus)
• RS-232 connector (for debugging and maintenance use)
These connectors provide the OrPT both (RS-485 and Ethernet) communication links and power
supply input (15V-24V DC). In the Islander Plus & ICR Plus power input is 24V DC
The power is supplied from an external power supply module (for example, in the OrPT box).
In addition, the OrPT includes a connection point for grounding the module for surge protection.

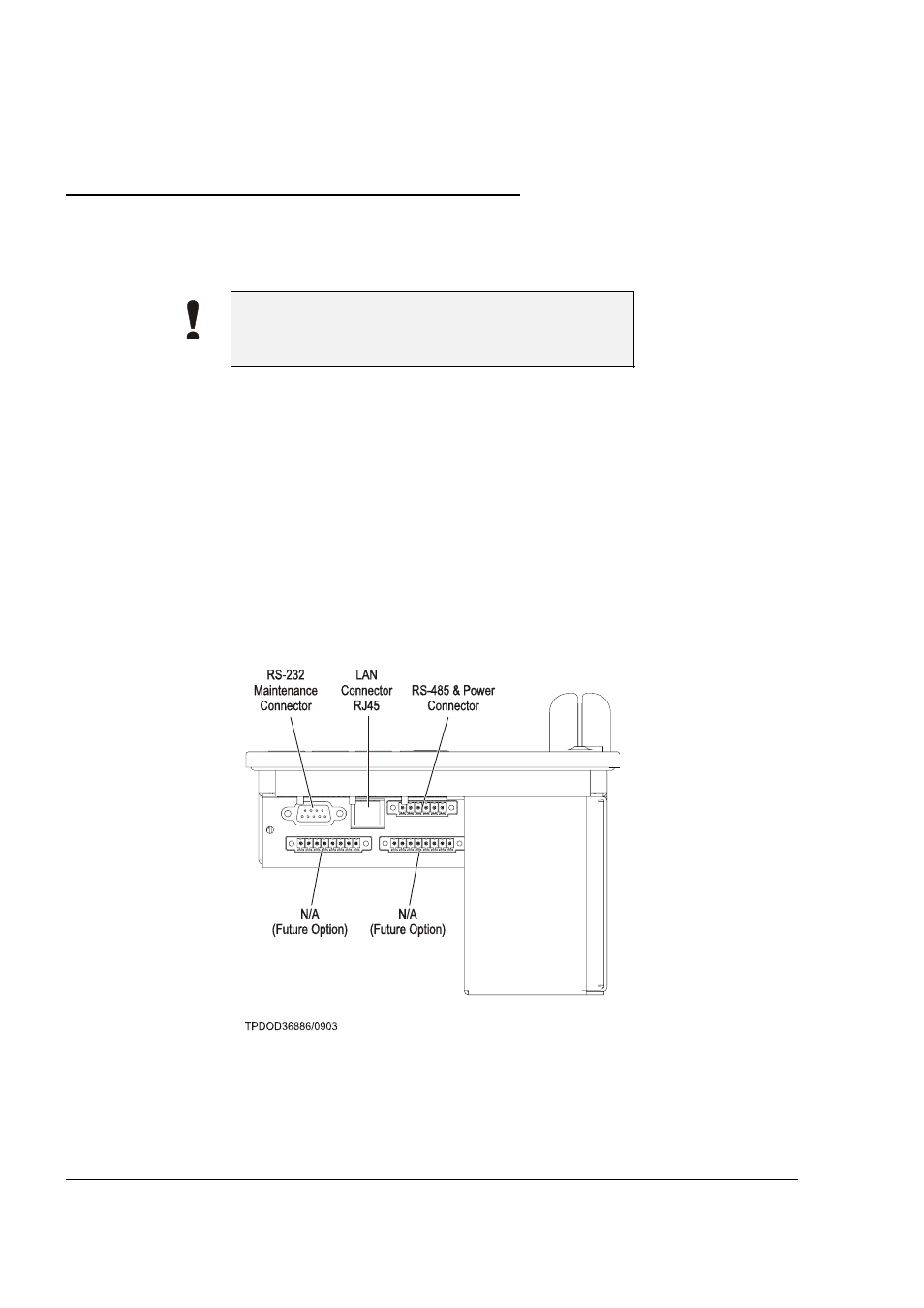

Figure 2-5. OrPT Connectors Panel (for Wired Connectivity)
