2 pccb cabling connections – Comtech EF Data PCB-4000 User Manual
Page 31
PCB-4000 1+1 Phase Combiner
Revision 2
Installation, Startup, and Troubleshooting Procedures
MN/PCB4000.IOM
3–3
3.2.2
PCCB Cabling Connections

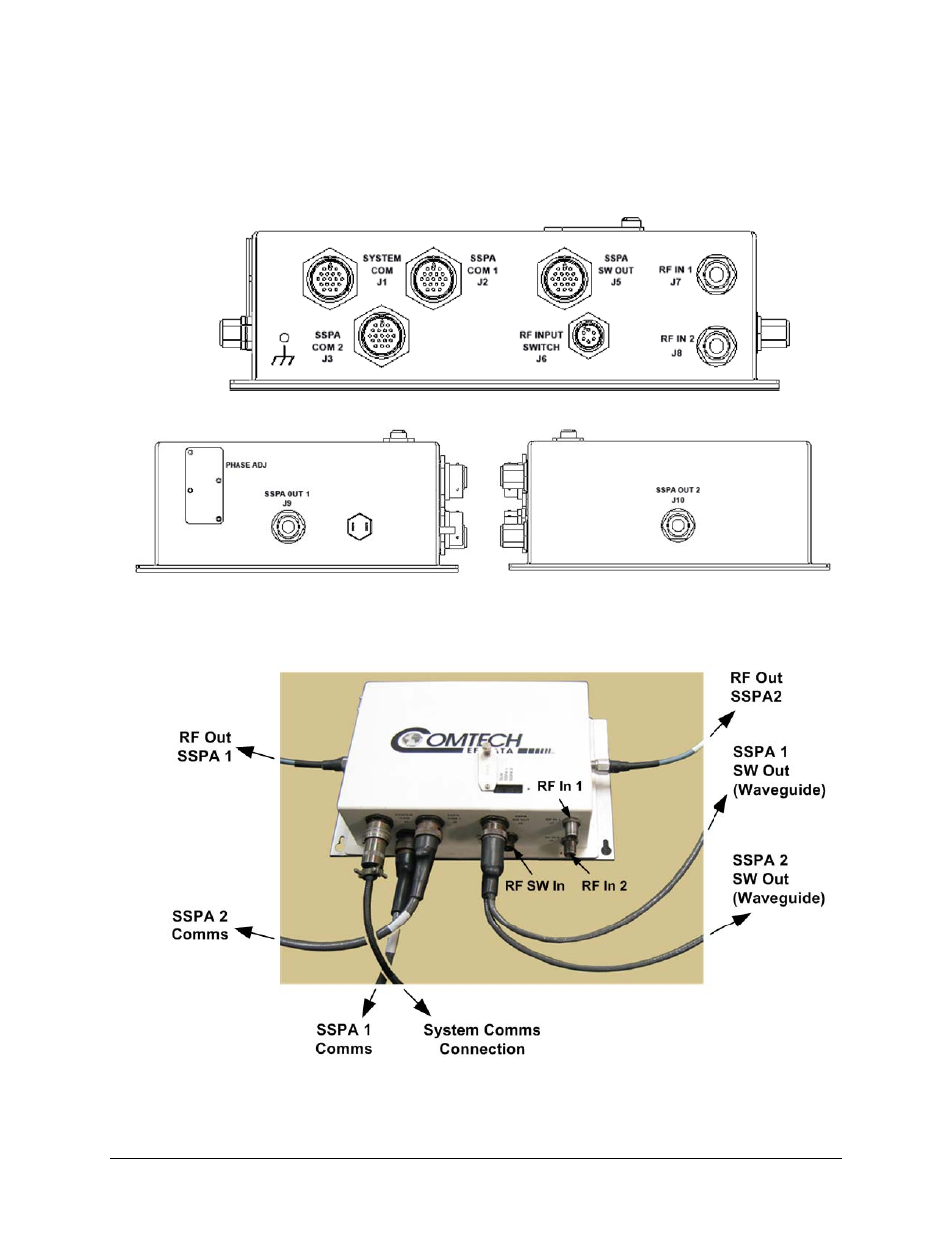

Figure 3‐2 shows the PCCB external connectors. Figure 3‐3 summarizes the cables as routed from
these connectors to other components of the 1+1 Phase Combiner System.
PCCB Front View
PCCB Left Side View
PCCB Right Side View
Figure 3-2. PCCB External Connectors
Figure 3-3. PCCB Cable Connections
SSPA
OUT 1
J9
SSPA
OUT 2
J10
