3.2 System Assembly, Cabling, and Installation
3.2.1 1+1 Phase Combiner System Assembly
Figure 3‐1 shows an example of the PCB‐4000 deployed in a typical 1+1 phase combined system
(see Appendix A. ASSEMBLY KITS for details on band‐specific system applications). Take note of
the callouts in this figure, as they are referenced in the procedures provided in this appendix.

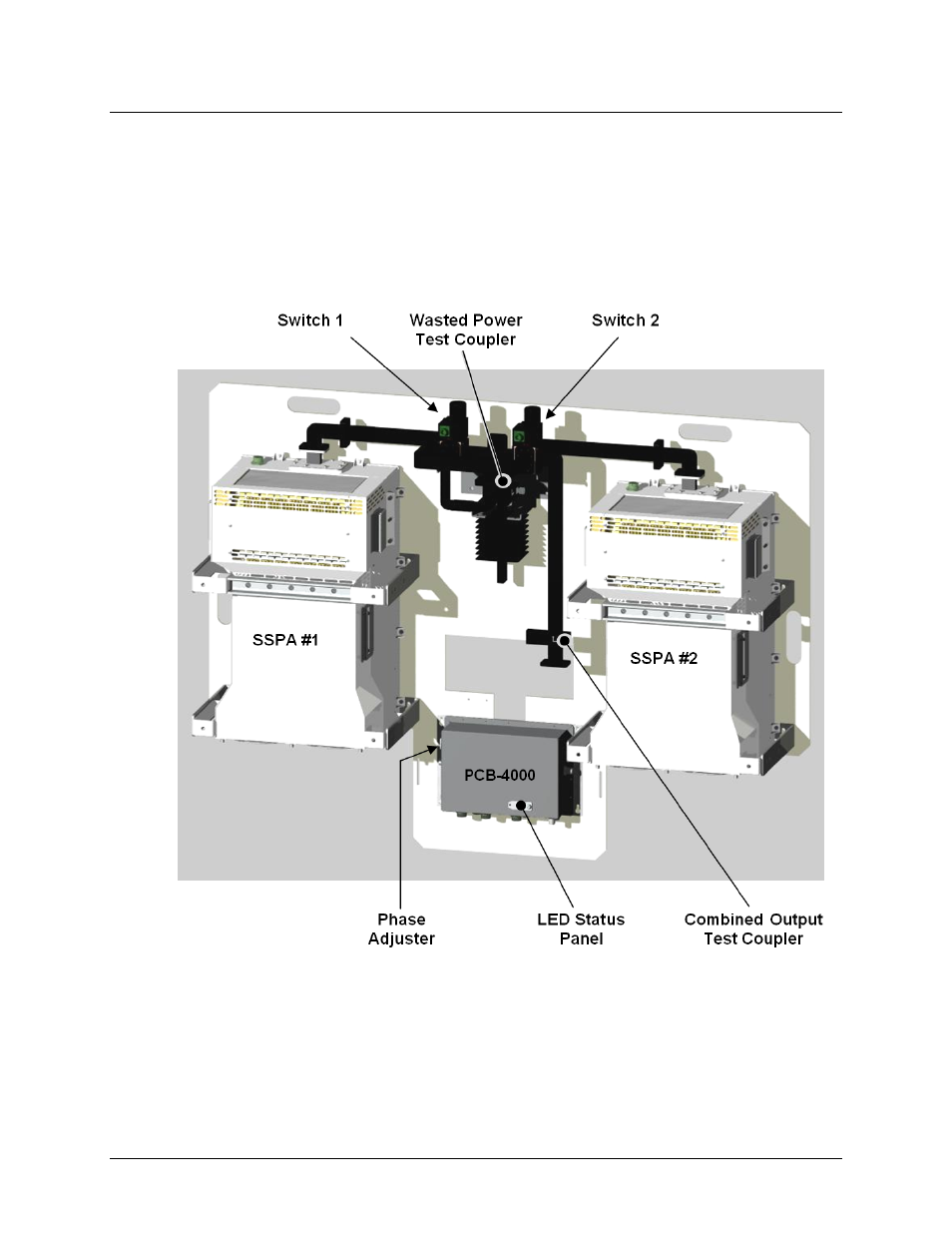

Figure 3-1. PCB-4000 1+1 Phase Combiner System Assembly Example
