PCB-4000 1+1 Phase Combiner Revision 2
Introduction MN/PCB4000.IOM
1–2
1.2 Functional Description
The PCB‐4000 is available in an X‐Band version (CEFD P/N PL/11285‐1), a C‐Band version (CEFD
P/N PL‐0000330), or a Ku‐Band version (CEFD P/N PL‐0021051). The box may be included in a top‐
level system assembly or as a subassembly kit item. For application examples, see Appendix A.
ASSEMBLY KITS.
Monitor & Control (M&C) System Interconnect
RF System Interconnect

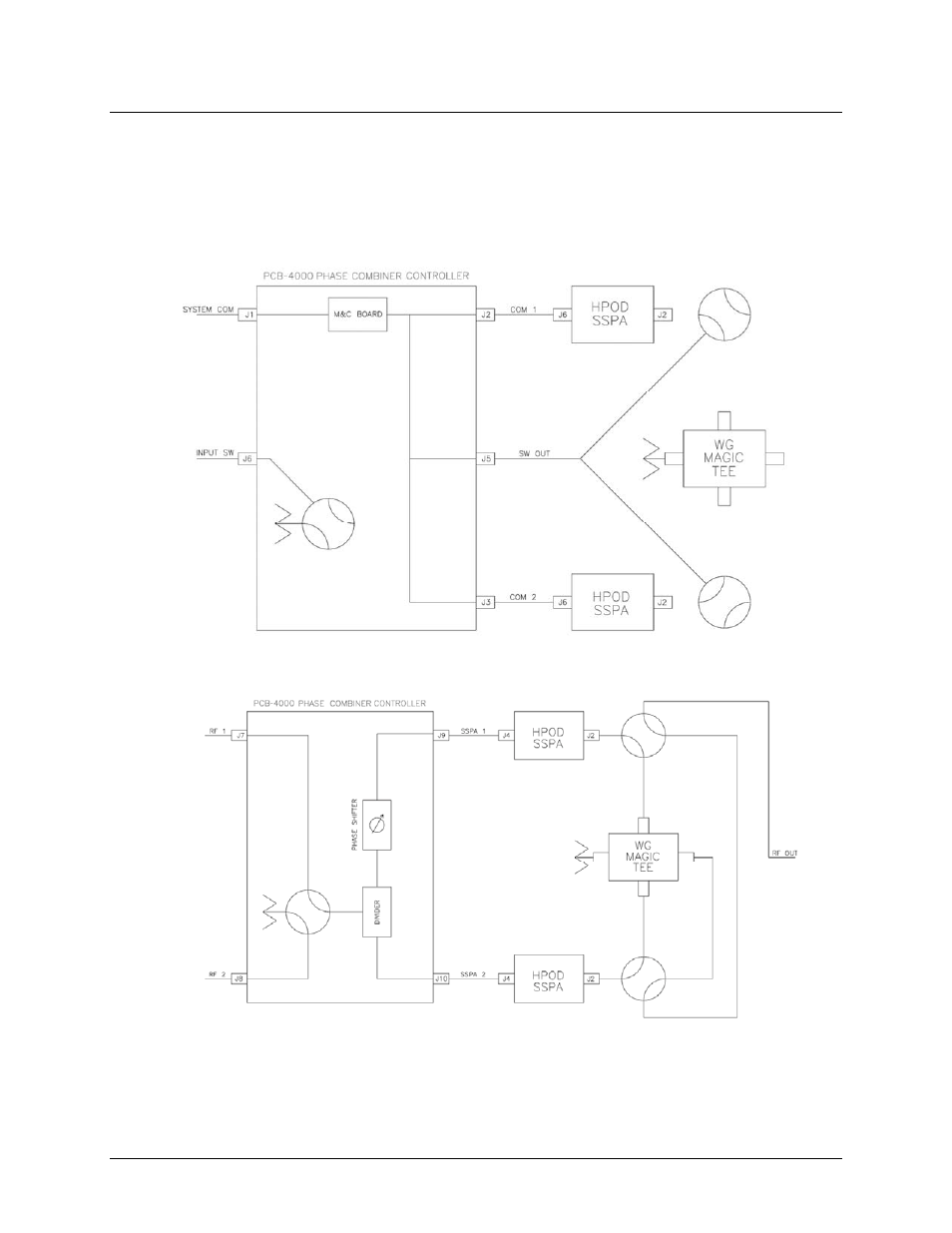

Figure 1-2. Comtech EF Data 1+1 Phase Combined System Block Diagrams
