RCF6001 Satellite Terminal ODU Installation
TM082 - Rev. 1.0 Page 5-11

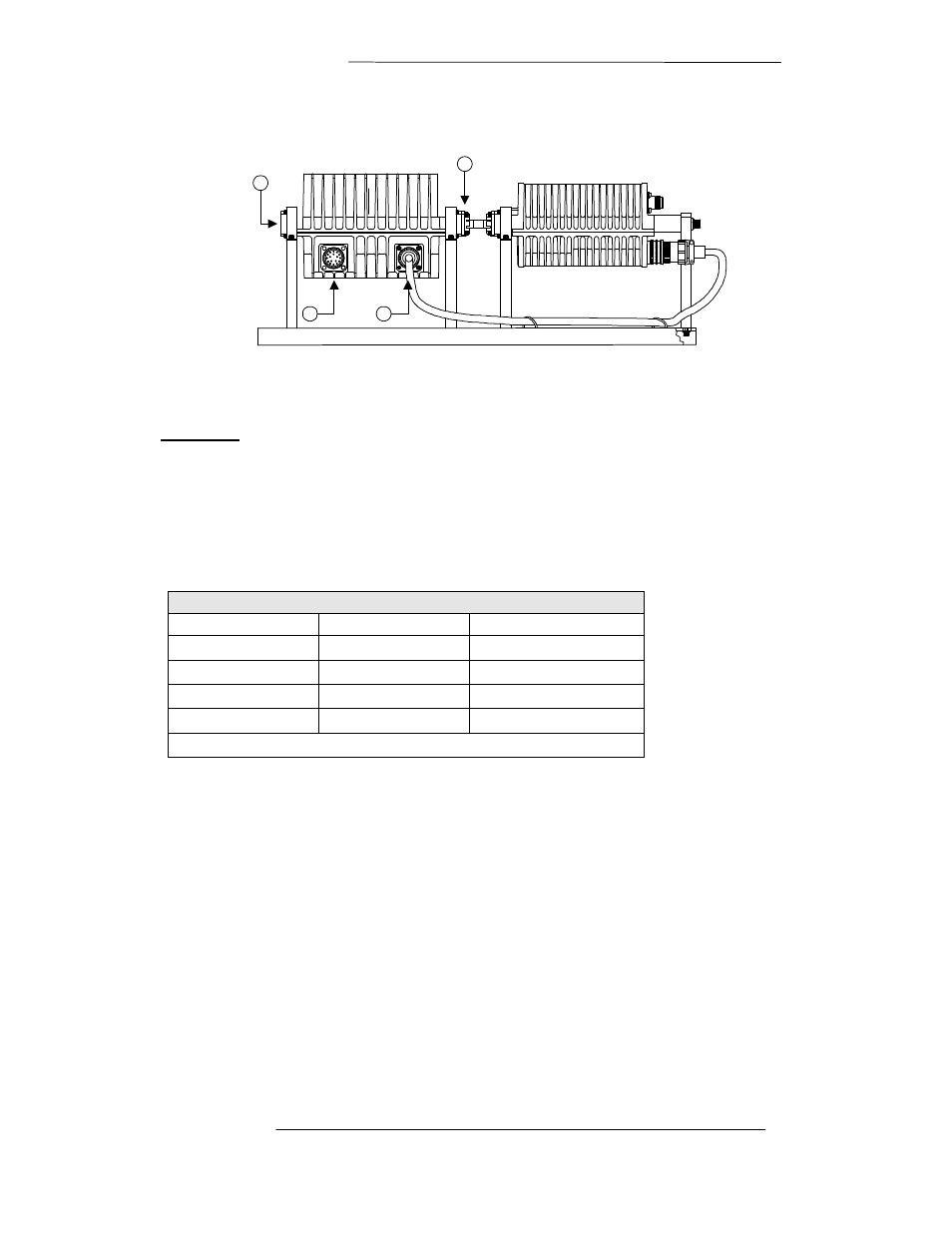

Figure 5-3 8-Watt / 16-Watt ODU BUC Connector Details.
16BUC.VSD
ODU (BUC) SSPA
4
3
1 2
1. 48Vdc / RS-485 Port
Function: 48 Vdc Interface from AMP Controller
Step 22. 16-Watt Configuration ONLY.
Step 23. Radyne ComStream does not provide the AMP Controller to SSPA 48 Vdc Cable
assembly as part of these systems, only cable connectors are provided. Refer to Table
4-5 for cable wiring information.
Table 5-5 Wiring for 48 Vdc Connector to SSPA
Pin Assignment
Amp Controller SSPA Description
Pin 1 Pin K +48 Vdc
Pin 2 Pin L +48 Vdc
Pin 3 Pin J GND
Pin 4 Pin M GND
* Remaining pins are not used.
Step 24. Recommendation: Use AWG 18 or lower shielded multi-conductor cable.
Step 25. Recommendation: Connect the shields to the ground pins on either end of the cable to
minimize radiated susceptibility and emissions.
2. BUC / SSPA Interface Port
