24 •
••
• Control Panel Operation
Test
- TEST and START must both be used
- Test will stop when the buttons are released
- Labels between print station one and the knife will be cut and stacked as
finished labels
- Stock moves through in one continuous strip
- Stock moves through with test pattern printing
- The ink will advance with the stock.
- The print heads must be latched in the down position.

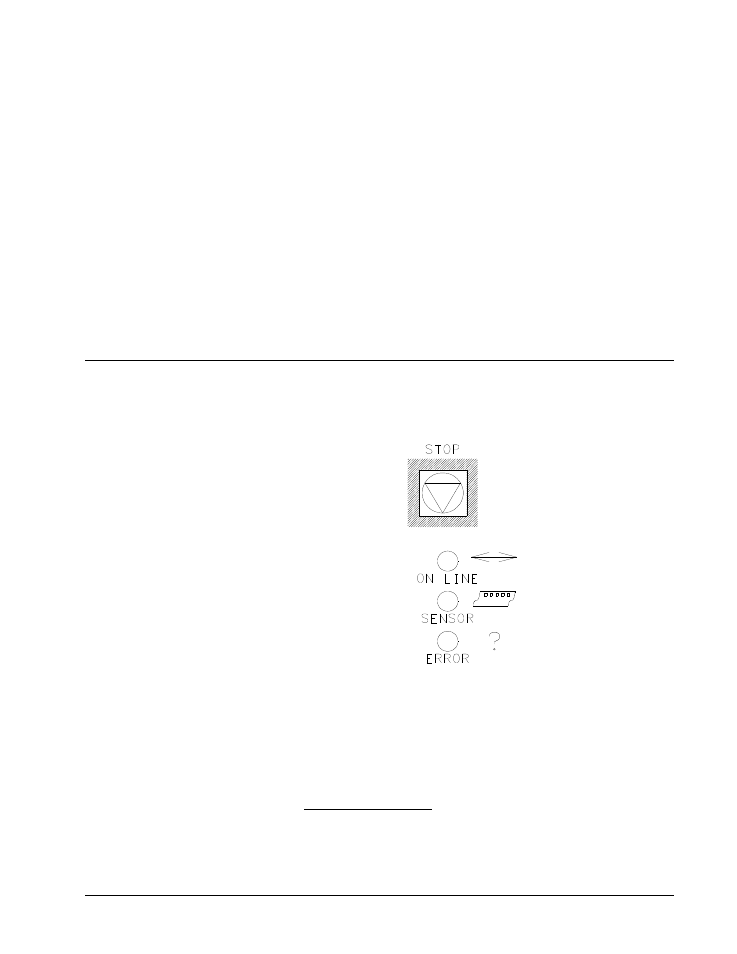

Stop
- The stop button will stop the printer at the end of the current label being
printed.
Indicator Lights
The AVERY DENNISON 676 has three Indicator lights. These lights are used along
with the LCD display to tell the operator the current status of the printer.
On Line
OFF
- Has not been powered on.
- Is in its power - up sequence.
- Failed the system test
After Power Up Sequence:
- Printer is running.
