107
11.1 Auto Calibration
11. MAINTENANCE AND SUPPORT
A LiveCore™ unit includes an automatic calibration system. This system will calibrate all analog outputs/
inputs thanks to internal test pattern. To be sure the calibration will do in the right way, please unplug all
video input/output cable. The unit is able to perform itself the calibration without any other devices plugged.

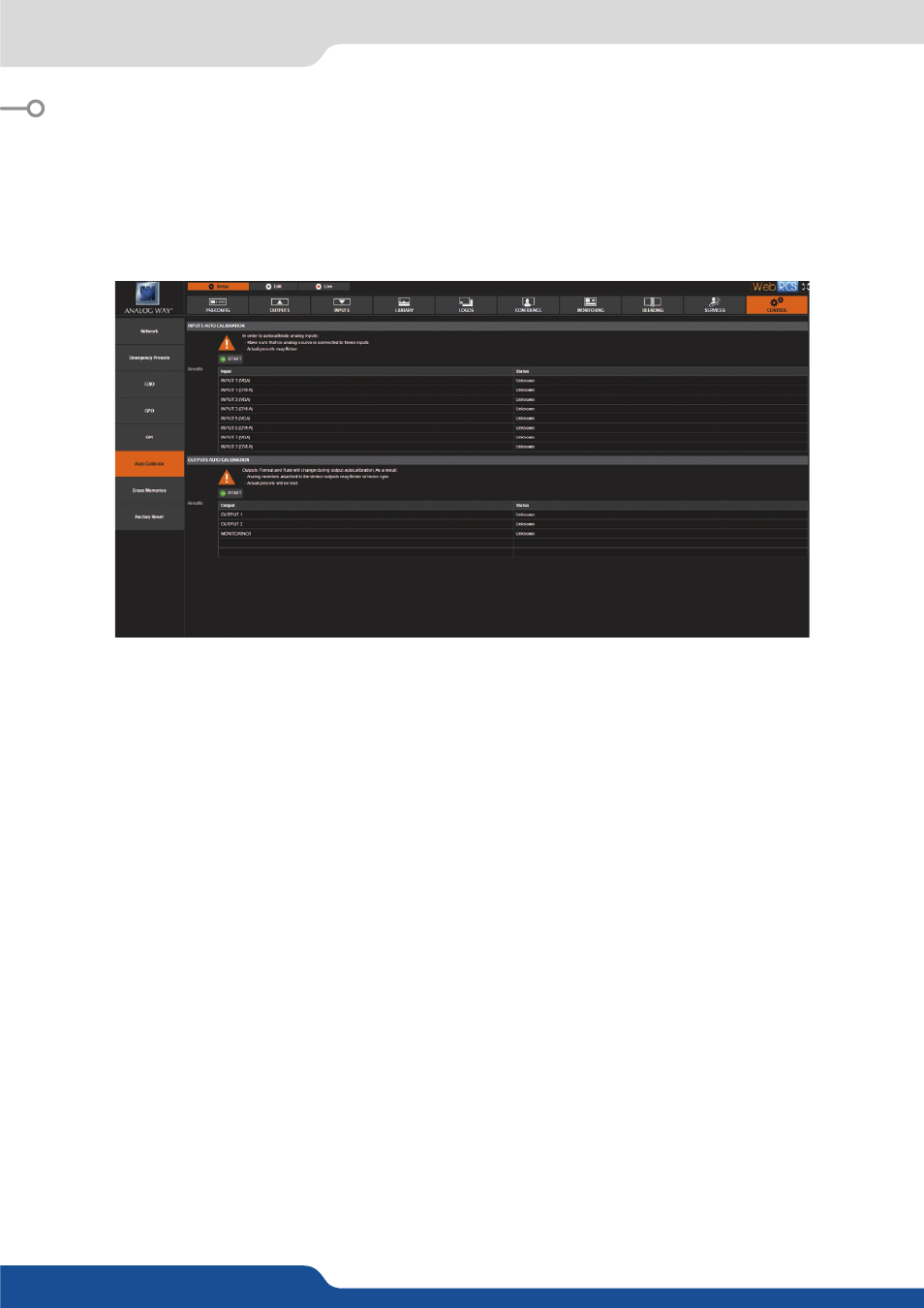

Go into the CONTROL menu, and then auto calibrate.
Choose Input or Output calibration and click and START button to launch the process.
NOTE: Don’t press START if you are running a show, live modifications can appear on your screen.
Don’t press START if you don’t need any calibration.
