Connecting to the Load in Remote Sensing Mode (Parallel
Control Method)

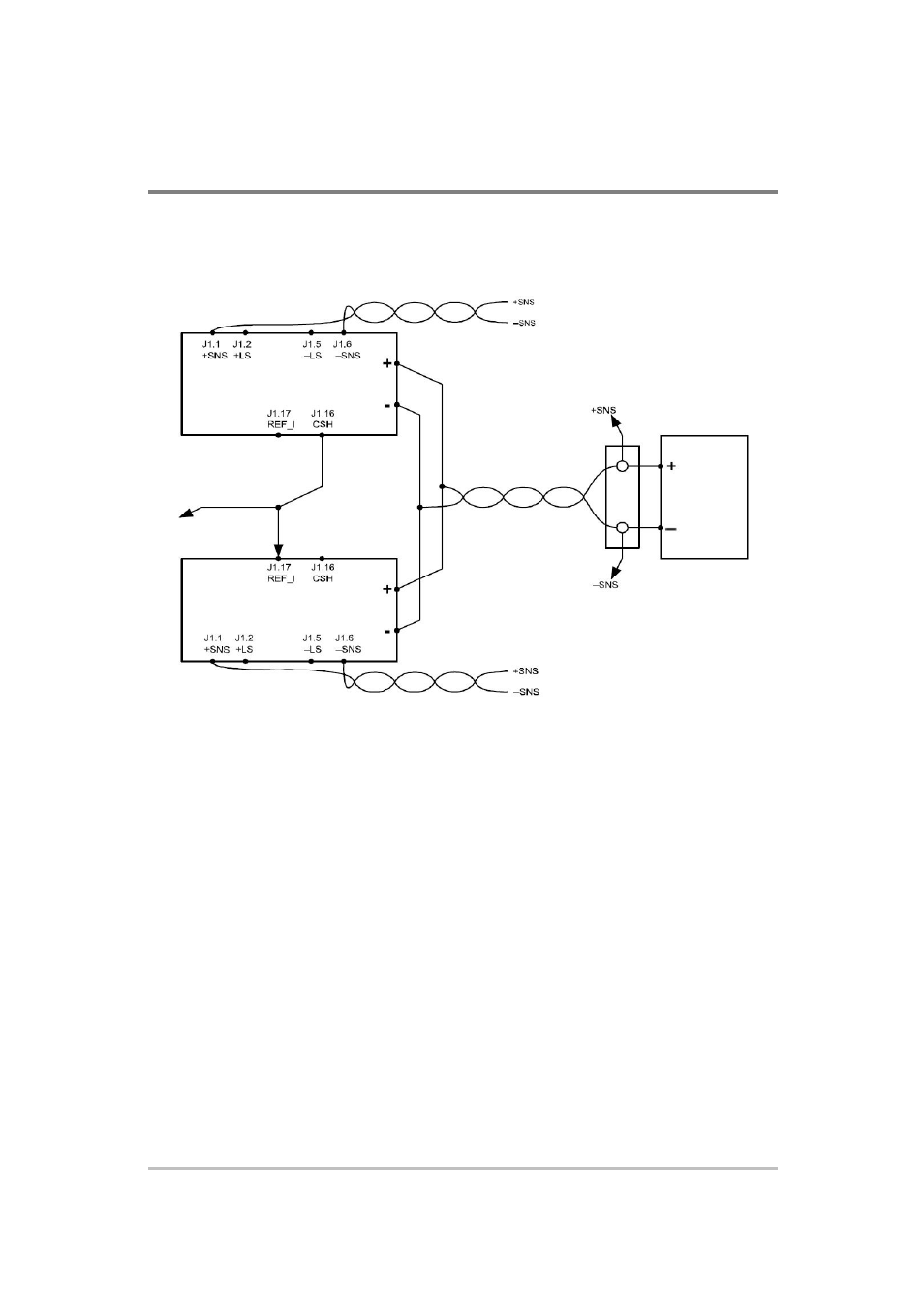

Figure 3-8

Load Connections in Remote Sensing Mode (Parallel
Control Method)

MASTER PSU

To other slaves

SLAVE PSU

Shielded Twisted Pair

Out

Out

LOAD
