Production run one-sided lamination
For production run one-sided lamination, the machine requires a simple modification as follows. Make
sure to follow all safety procedures as described in this manual.
1. Unplug the machine. Never work on the laminator while it is energized.
2. Remove the right-hand side panel

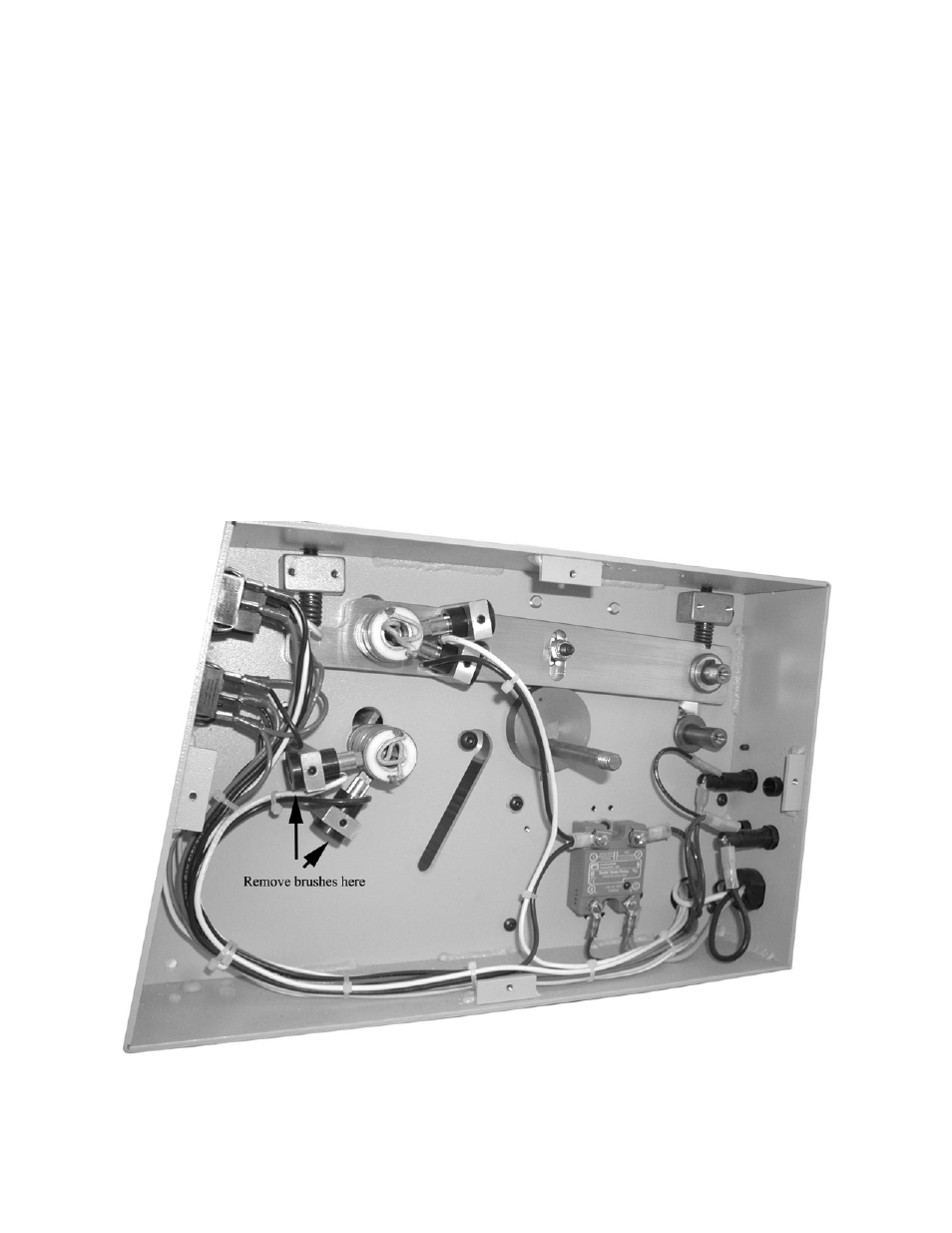

3. Remove the lower roller brushes these are located inside the machine on the end of the lower
roller. On the end of the roller is a slip ring. Contacting the lower slip ring are two brushes
contained in two brush holders. These brushes must be removed. On the backside of the brush
holder is a cap that holds the brush in place remove this cap on both of the brush holders. The
spring that the brushes are attached to will move out, you may now pull on this to remove the
brushes.
4. Replace the caps and side panels. Keep these brushes for future use.
