24
Tower Alignment
If the stand arrived with the towers attached you possibly will not need to follow this alignment
procedure however, it is recommended before proceeding make sure that the towers are correctly
aligned. Before starting this alignment, procedure makes sure screws are tightened only enough to make
moving the towers somewhat difficult. It may be necessary to use a rubber hammer or a block of wood
to adjust the towers.
The following procedure is a preliminary adjustment and it should not be the final adjustment
The final adjustment is done with the machine running see page 48.
The following instructions on the next several pages and page 48 are more critical on our wide format
machines and more care should be taken when following them.

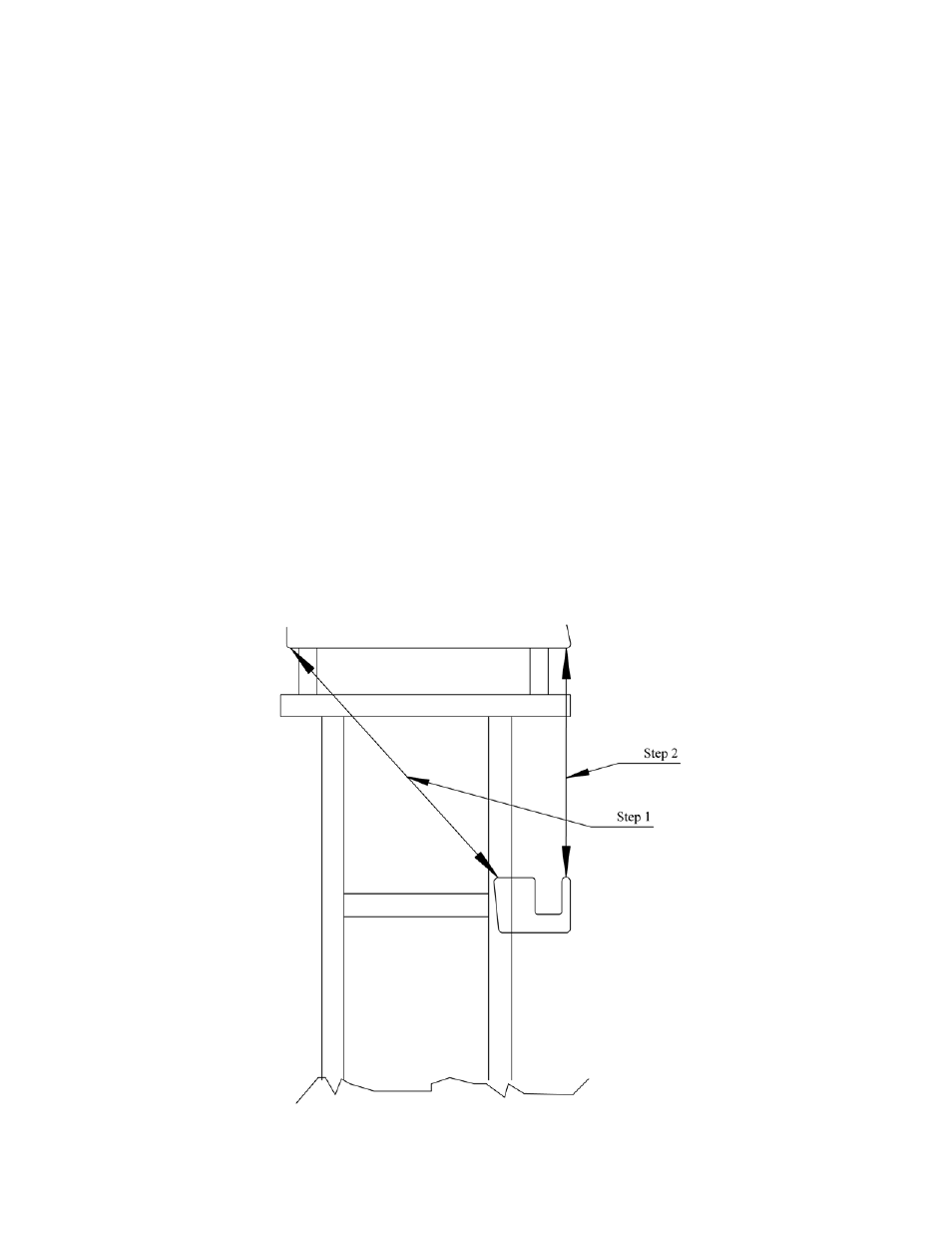

1. Measure between the top, rear corner of the mandrel tower to the rear corner of the laminator this
measurement should be made the same from the left tower and the right tower. Tighten the top
bolt until snug
2. Measure from the lower front corner of the towers to the lower front corner of the laminator
these should be made the same.
3. Tighten the lower mandrel tower bolts. Until snug.
4. Recheck alignment then tighten the towers to the frame.
