Drylam PRO-LAM PL1200-HP - Manual (Page 23)

23
MOUNTING THE LAMINATOR
The laminator is mounted to the top of the stand using the four thru holes on the top of the stand
1. Set the stand in position on a flat level surface.
2.
If the laminator arrived with rubber pads on the feet, these must be removed. Using two people,
tilt the laminator back while using a 5/32 Allen wrench loosen the cap screw and remove the pad.
3.
Make sure that the mounting bolts and pads are properly placed on the stand. The rubber pads
should hold the bolts in position securely.
4.
Carefully set the laminator on the stand while aligning the legs on the laminator with the pads on
the stand.
Make sure that at least one person holds the laminator from moving or falling until the
laminator is completely secured to the frame.

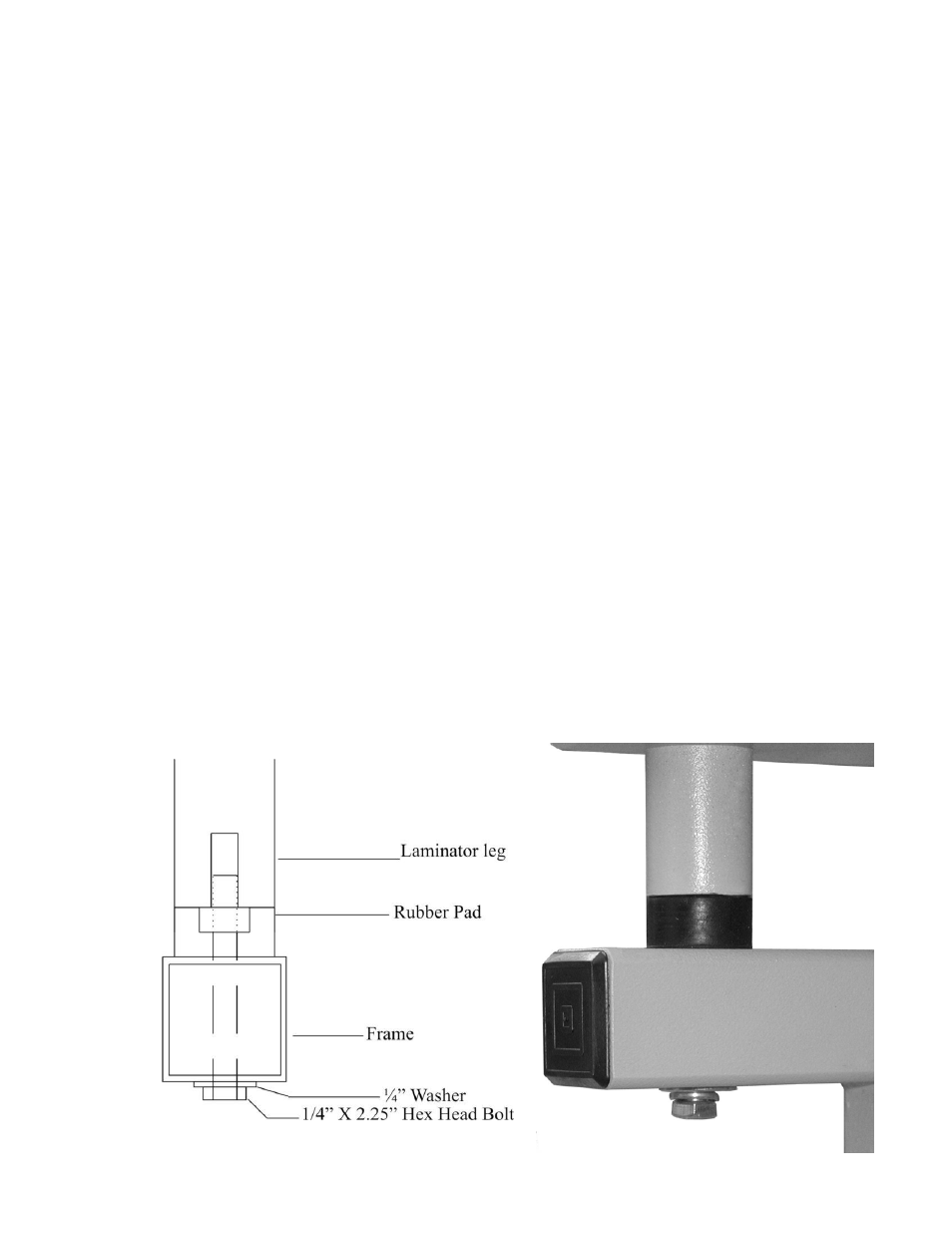

5. Install the ¼ ” bolts from the bottom side of the tube, Align holes and start the threads in all four
holes do not tighten until all four bolts are started, then tighten until snug. Do not over tighten
and crush the rubber feet as this may result in laminator misalignment. Typically, tightened the
bolt just enough that it just starts to flatten the lock washer.
