19
STAND ASSEMBLY
These instructions for the stand are correct assuming that the stand frames were delivered with the
mandrel towers and feet / wheels installed. If they are not please refer to the included documentation for
documentation on this, then refer to the following instructions
The hardware for assembling the stand was shipped in a parts box that was included in the laminator
box.

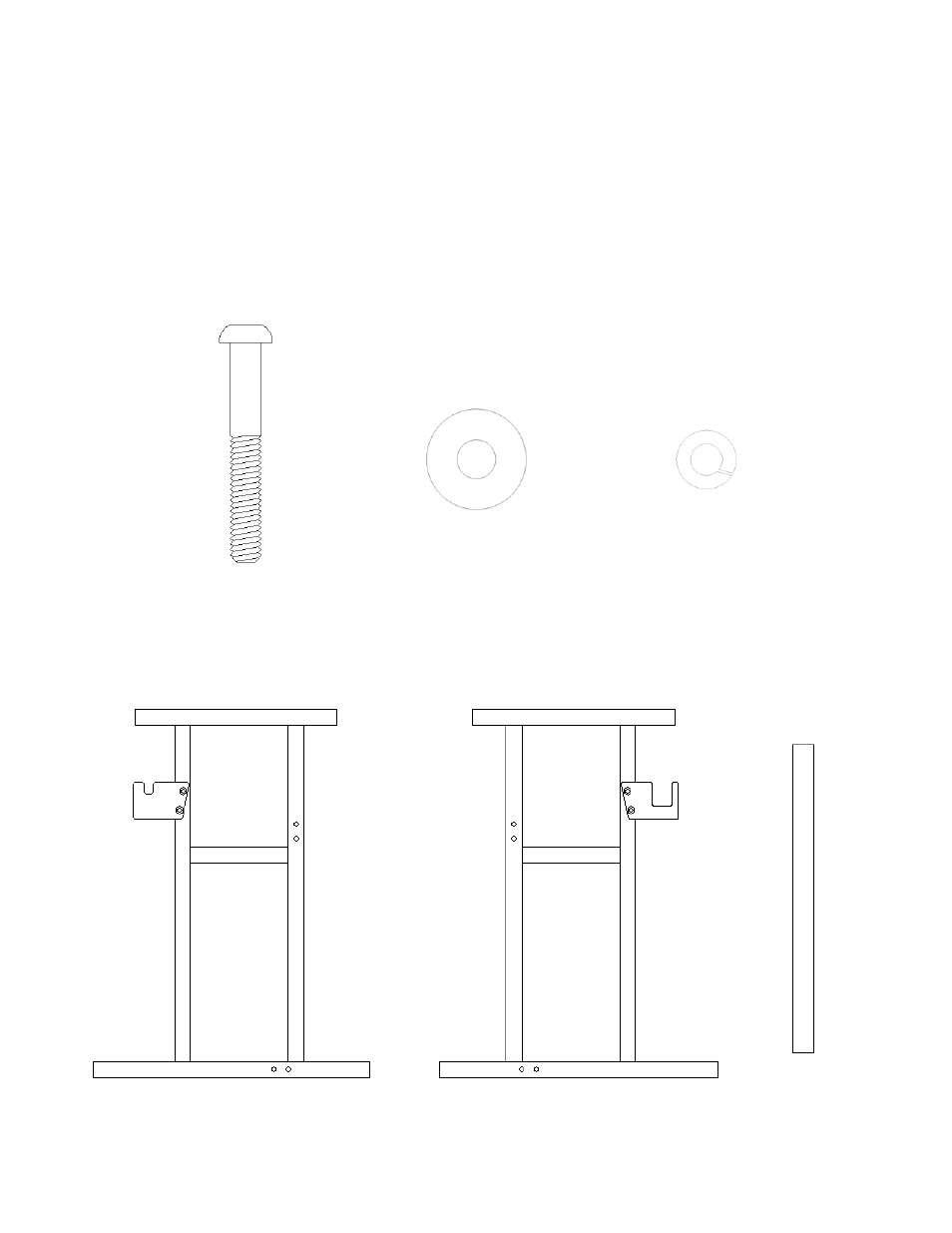

Hardware Identified as:
5/16-18 Button head Socket
Cap Screw
8 pieces
5/16 Flat Washer
8 pieces
5/16 Split Washer
8 pieces
Stand parts:
Stand Frame Left Stand Frame Right Spreaders, 2 typical
