37
SLITTERS
!!!Use caution at all times in the vicinity of the slitter assemblies, as the knives are
razor sharp!!!
!!!If there exists any uncertainty about the operators’ competence, remove the
blades immediately!!!
!!!REMEMBER THESE BLADES ARE EXTREMELY SHARP AND ARE CAPABLE OF
DISMEMBERMENT OR DEATH THEY SHOULD BE USED WITH EXTREME CARE AND
REMOVED WHEN NOT ABSOLUTELY NECESSARY!!
When the slitters are removed, make sure that they are stored in a safe location as to prevent injury.
The slitter assemblies are optional equipment that may or may not have been purchased with the laminator
Slitter Assembly
The slitters may have already been installed on the laminator if so disregard the following several pages.
Included with the slitter assembly are the following:
• 1 Set of high capacity towers
• 2 Fine adjustment guides
• 2 Slitter assemblies
• 1 Slitter shaft
• 2 Tensioning Springs
• 1 Shaft collar with an expansion spring or washer
• Appropriate hardware and wrenches for installation and adjustment

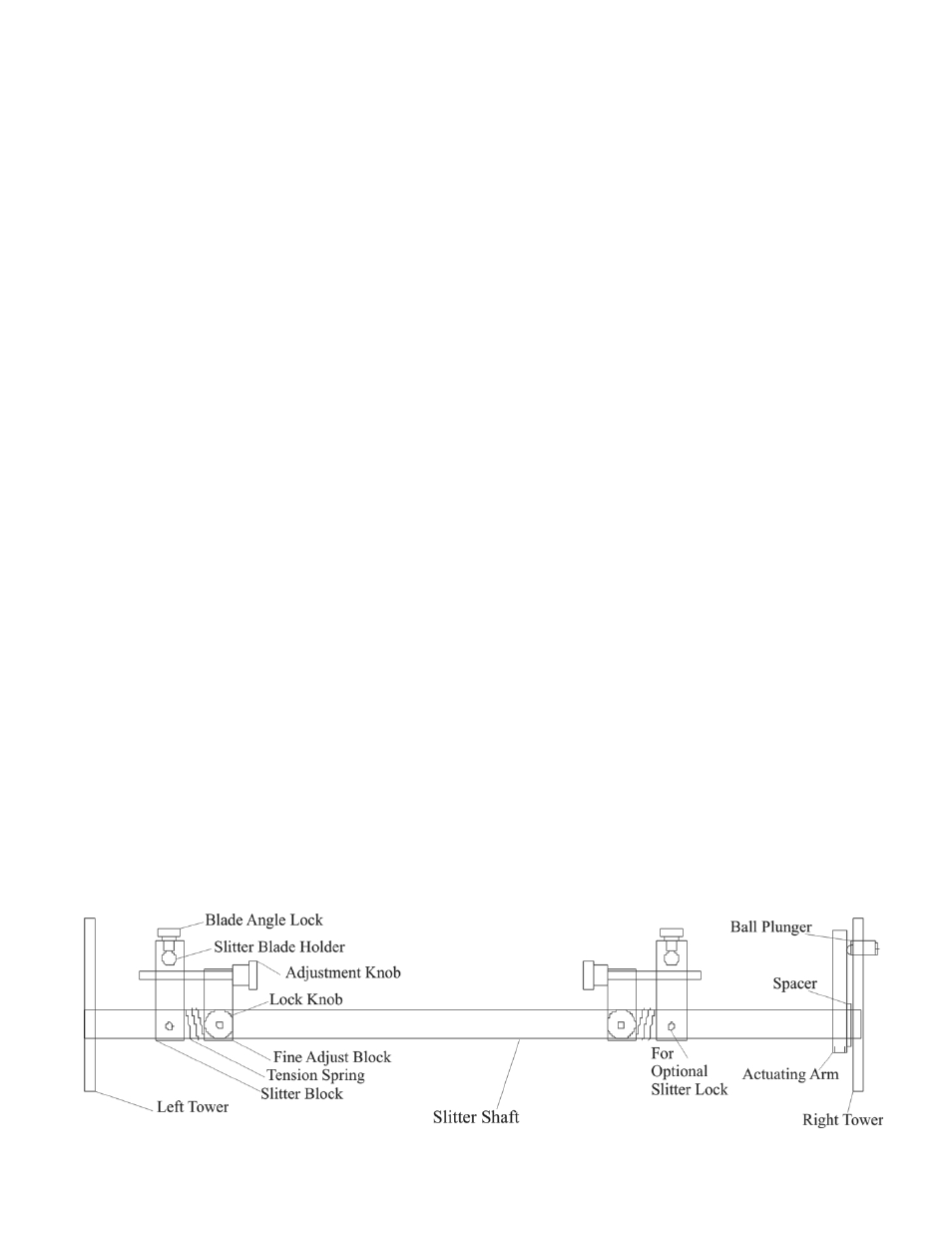

Typical slitter installation
