Figure 1–5, Figure 1–6 – Altera Nios Development Board User Manual

Page 21

background image

Altera Corporation

1–13

September 2004

Nios Development Board Reference Manual, Stratix Edition

Board Components

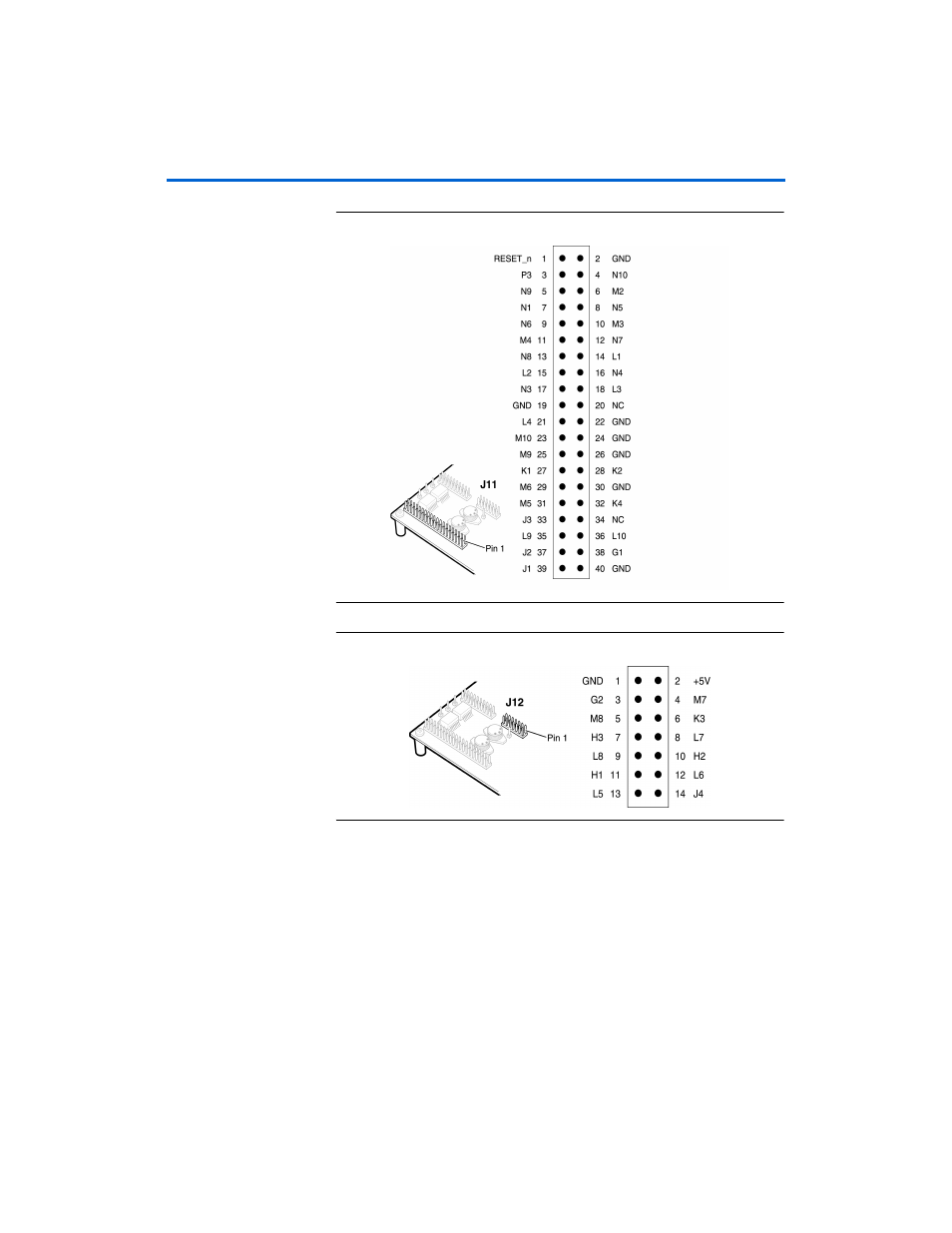

Figure 1–5. Expansion Prototype Connector - J11

Figure 1–6. Expansion Prototype Connector - J12
