P/N: 4FU020-610

©2008 Vortech Engineering, LLC

All Rights Reserved, Intl. Copr. Secured

06AUG08 v4.1 05MusV6(4FU..610v4.1)

27

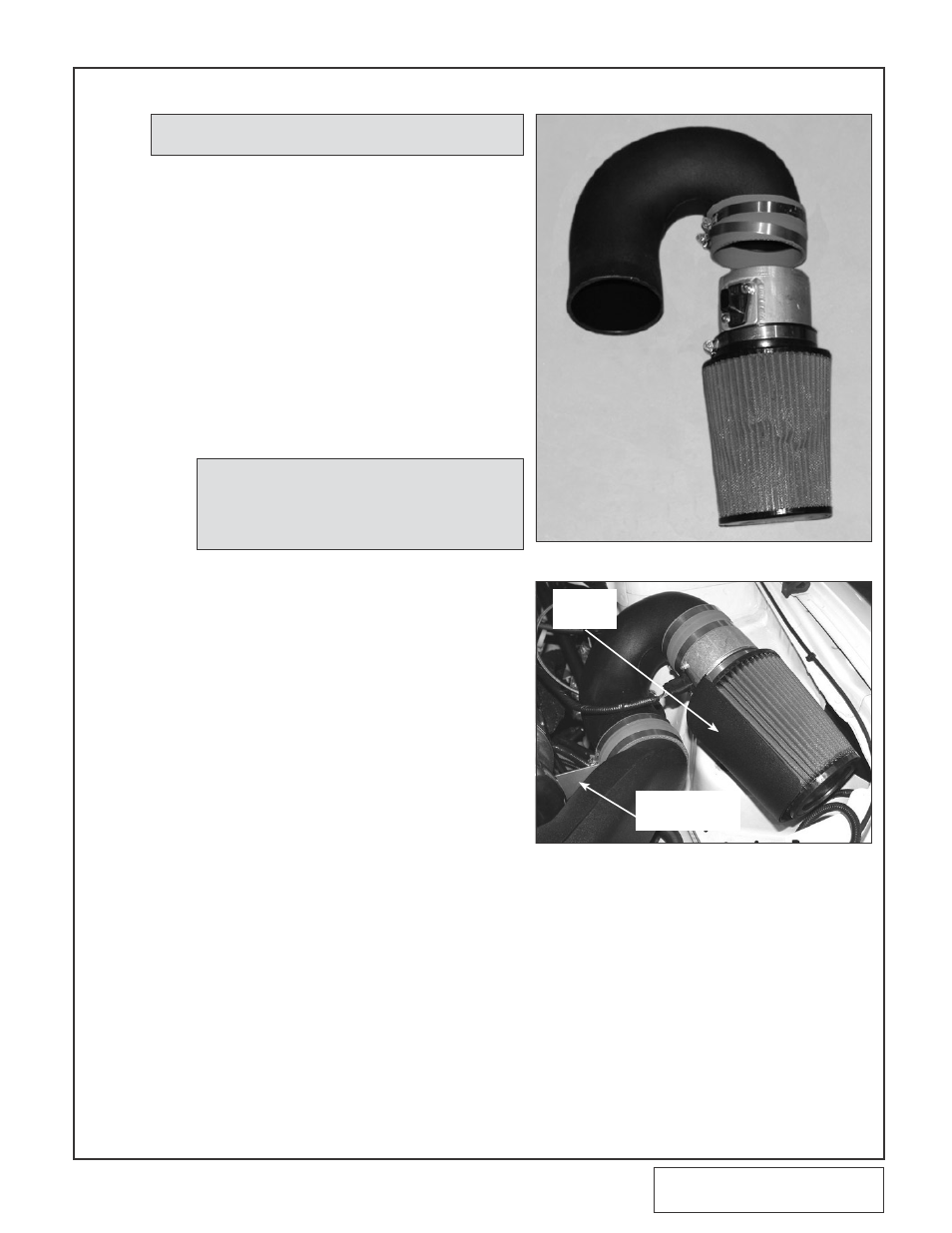

L. Install the MAF sensor and air filter to the

180° duct. (See Fig. 9-e.)

M. Install the 180° duct and the MAF sensor with

the filter to the inlet duct leading to the

Supercharger. (See Fig. 9-f.) Clock the MAF

exactly as shown in the figure.

N. Secure the rear clamp at the inlet duct union

to the previously installed support bracket.

(See Fig. 9-f.)

O. Install the air filter cover as shown. (See

Fig. 9-f.)

P. MAF (Mass Air Meter) Harness Extension:

1. Locate the supplied wire and butt con-

nectors in assembly 4FU139-096.

NOTE: Install the MAF sensor element so the

inlet of the sensor faces the air filter.

NOTE: It is strongly recommended that

the wires be soldered. Temporary

solderless connectors have been

provided in case you are unable

to solder.

Fig. 9-f

Fig. 9-e

9. AIR INLET ASSEMBLY, cont’d

2. Remove the split loom from the factory

wires on the MAF (Mass Air Meter) sen-

sor.

3. Cut the wires to the connector approxi-

mately 2" from the plug.

4. Using the supplied connectors and wire

extend the connector to the MAF.

5. Install the supplied 3/8" split loom to the

extended sensor plug harness. Secure

the split loom with wire-ties or tape.

6. Route the lengthened wires and connec-

tor to the MAF, keeping the wires away

from hot or moving parts.

AIR INLET

SUPPORT

BRACKET

AIR

FILTER

COVER
