Supercharger bracket installation, cont’d – Vortech 2005-2008 Ford 4.0L V6 Mustang User Manual

Page 17

P/N: 4FU020-610

06AUG08 v4.1 05MusV6(4FU..610v4.1)

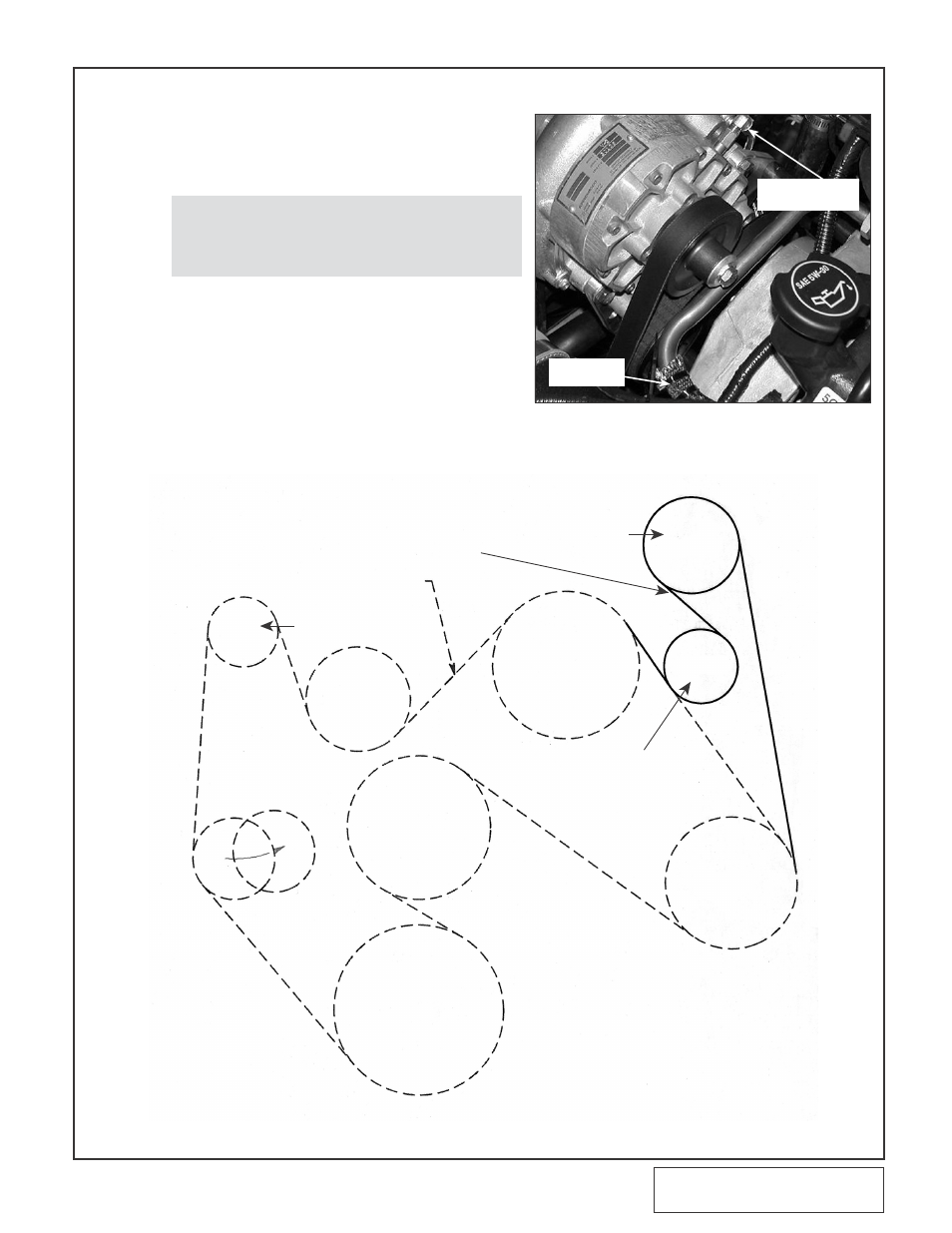

Fig. 6-d

Fig. 6-e

6. SUPERCHARGER BRACKET INSTALLATION, cont’d

*L. Attach the oil drain line to the fitting previous-

ly installed in the timing cover. Secure with a

#8 clamp

*M. Attach the previously installed oil feed hose

to the supercharger using the supplied 90° fit-

ting. Do not overtighten. (See Fig. 6-d.)

**N. Secure the "remote" drain hose away from

the belt and other hoses using tie-wraps.

HEAT

SHIELD

OIL FEED

CONNECTION

NOTE: Ensure that the hose does not have

any dips or kinks in the routing.

Supercharger failure may be the

result of a restricted drain path.

SUPERCHARGER

PULLEY

SUPERCHARGER

IDLER

AIR

CONDITIONING

PULLEY

POWER STEERING

PULLEY (MAKE SURE

WITH SUPPLIED

BOLTS)

SUPERCHARGER BELT ROUTING

FACTORY

IDLER

ALTERNATOR

(PULL IN DIRECTION OF

ARROW TO INSTALL

WATER

PUMP

PULLEY

CRANK

PULLEY

SPRING TENSIONER

FACTORY BELT ROUTING

TO REPLACE 3 BOLTS

* Applies to "engine oil-fed" units only. V-3 applications skip

these steps.

** Applies to V-3 Applications only.
