7. CHARGE AIR COOLER INSTALLATION (H.0. Kits Only), cont’d
A. BUMPER COVER AND SPLASH PAN cont’d
11. Disconnect the connectors on the parking
and the lower fog lights.
12. Remove the two 10mm headed bolts
(one each side upper portion of grill).

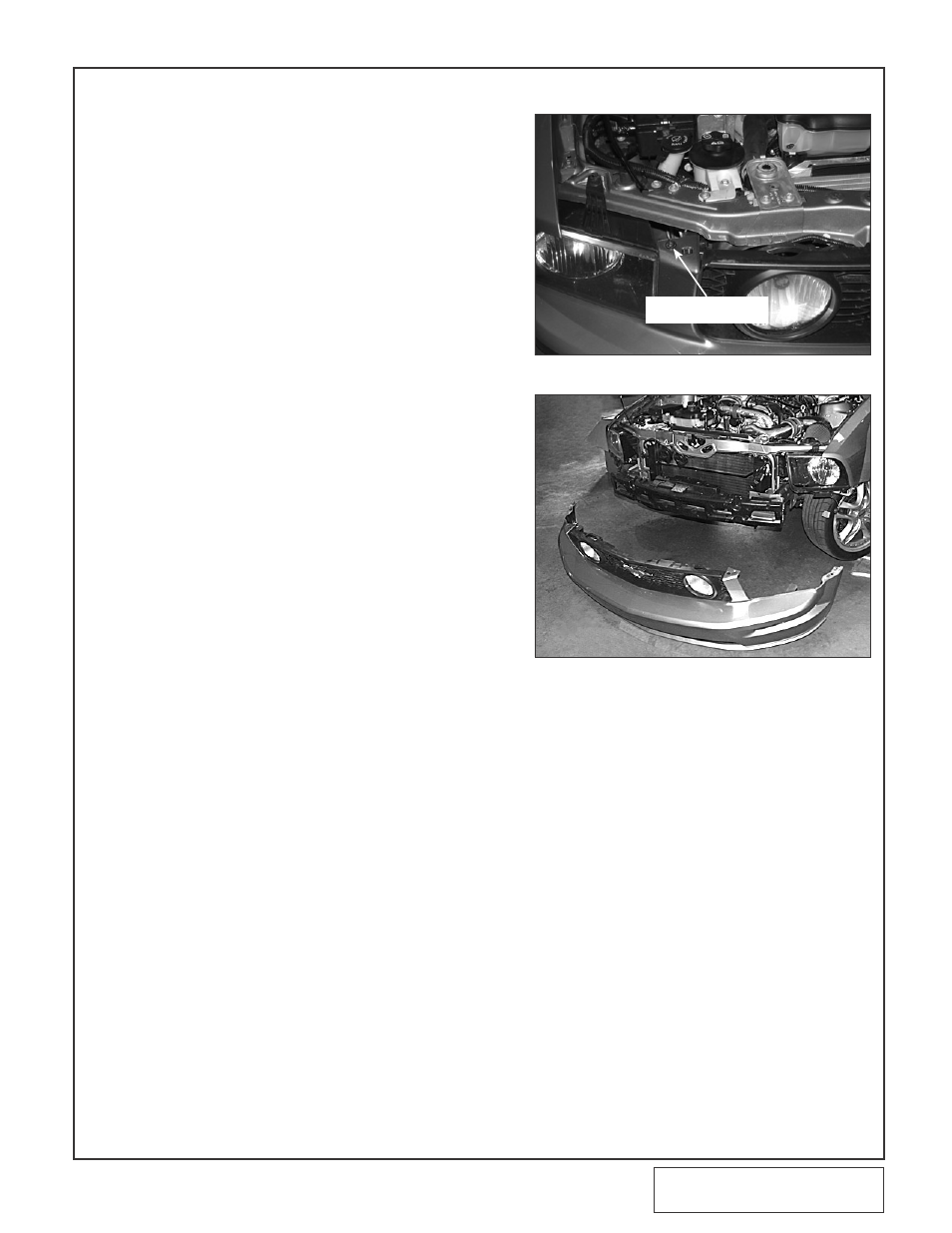

(See Fig. 7A-e.)
13. Lift up on the tabs releasing them from
the clips.
14. Pull out on the bumper cover
15. Remove the connector to the driving light
in the grill (if equipped).
16. Remove the bumper cover and set aside.
(See Fig. 7A-f.)
Fig. 7A-f
Fig. 7A-e
10mm HEADED
BOLT
