P/N: 4FU020-610

©2008 Vortech Engineering, LLC

All Rights Reserved, Intl. Copr. Secured

06AUG08 v4.1 05MusV6(4FU..610v4.1)

14

7. CHARGE AIR COOLER INSTALLATION

(H.O. KITS ONLY)

, cont’d

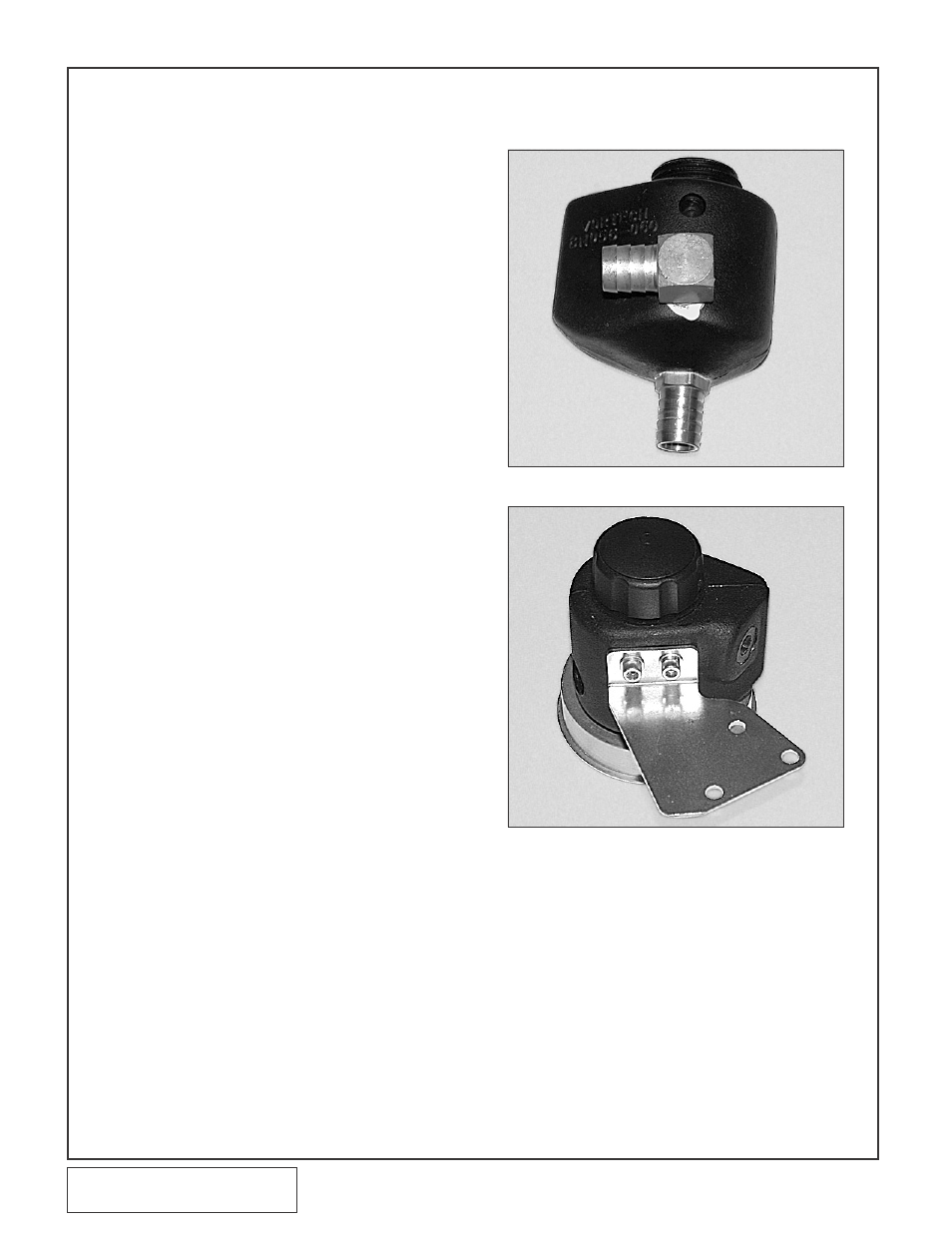

Fig. 7C-a

1. Assemble the surge tank reservoir

8N056-060 install a 1/2"NPT x 3/4"

straight barbed fitting in the bottom of

the surge tank and one 1/2"NPT x 3/4" x

90° in the side. (See Fig. 7C-a.)

2. Locate and attach the surge tank mount-

ing bracket 8N010-160. Attach the brack-

et with two 1/4-20 x 1/2" socket head

cap screws and washers. (See Fig.

7C-b.)

Fig. 7C-b

C.

SURGE TANK INSTALLATION
