Vortech 2005-2008 Ford 4.0L V6 Mustang User Manual

Page 30

P/N: 4FU020-610

06AUG08 v4.1 05MusV6(4FU..610v4.1)

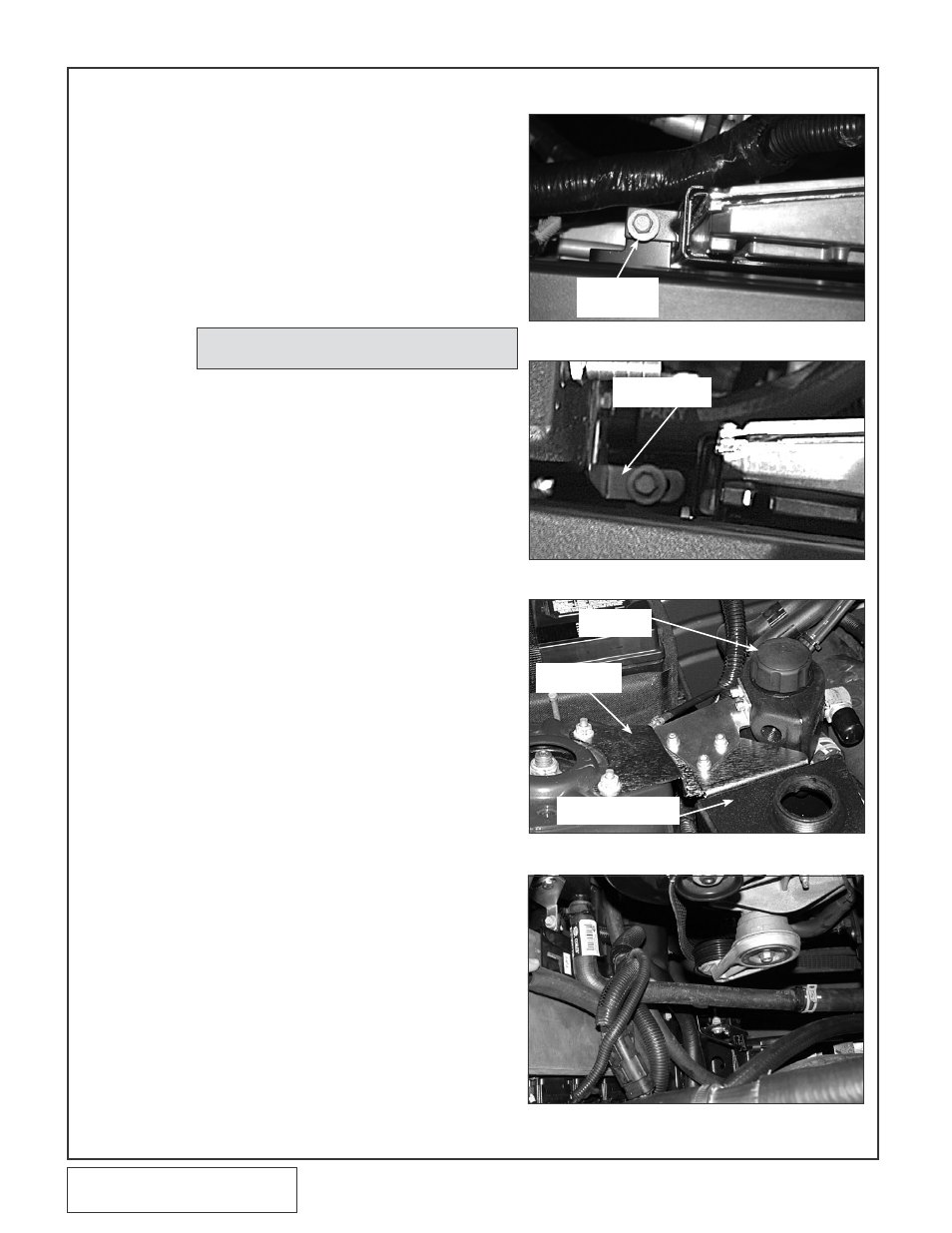

Fig. 7E-d

Fig. 7E-e

RESERVOIR

BRACKET

Fig. 7E-f

Fig. 7E-g

7. CHARGE AIR COOLER INSTALLATION (H.O. Kits Only), cont’d

5. Remove the 10mm headed bolt that

secures the back of the ECU and the

power distribution box. (See Fig. 7E-d.)

6. Install the coolant reservoir. Secure the

front of the reservoir with the factory fas-

tener removed previously. (See Fig.

7E-e.)

7. Attach the rear mounting bracket with the

surge tank mounting bracket to the strut

tower using the factory strut mounting

hardware, and 1/4-20 hardware provided

(See Fig. 7E-f.)

8. Attach a 3/4" hose elbow to the front of

the coolant reservoir. Use the supplied

Ø3/4" x Ø1" increaser to connect it to the

factory surge-tank hose. (See Fig. 7E-g.)

Tighten the clamps on all connections and

secure the hose so that it will not contact

any moving part.

NOTE: Leave this bolt loose for final

adjustment in a later step.

ENGINE COOLANT RESERVOIR

INSTALLATION (2007-2008 Models Only),

cont’d

SURGE

TANK

RESERVOIR

BRACKET

COOLANT

RESERVOIR

10mm

HEADED

BOLT
