A. Locate assembly 4FU112-610.
B. Install the Ø3/4"NPT x Ø1" x 90° Plastic fit-
ting into the air inlet duct. (See Fig. 9-a)
C. Install the Ø1/4"NPT x Ø5/8" hose barb fitting
in the location noted. (See Fig. 9-a)
D. Attach the 4.0" x 3.5" reducer sleeve to the
inlet duct. Secure the sleeves with the clamps
provided. (See Fig. 9-a.)
E. Attach the Ø5/8" hose previously connected
to the passenger’s side valve cover, to the
Ø1/4"NPT x Ø5/8" hose x 90° fitting installed
in a previous step.
F. Attach the Ø1" bypass outlet hose to the 90°
plastic fitting and secure the hose with a #16
hose clamp.
G. Install the duct onto the inlet of the super-
charger and secure in place with the clamps
provided.
H. Locate and install a Ø4.0" x 2.0" long sleeve
to the inlet of duct 4FU012-010 and two #64
clamps. (See Fig. 9-b.)
I. Remove the Factory MAF sensor element
from the top portion of the factory air filter
housing.
J. Install the element reusing the factory hard-
ware to the supplied MAF tube that is provid-
ed. (See Figs. 9-c.)

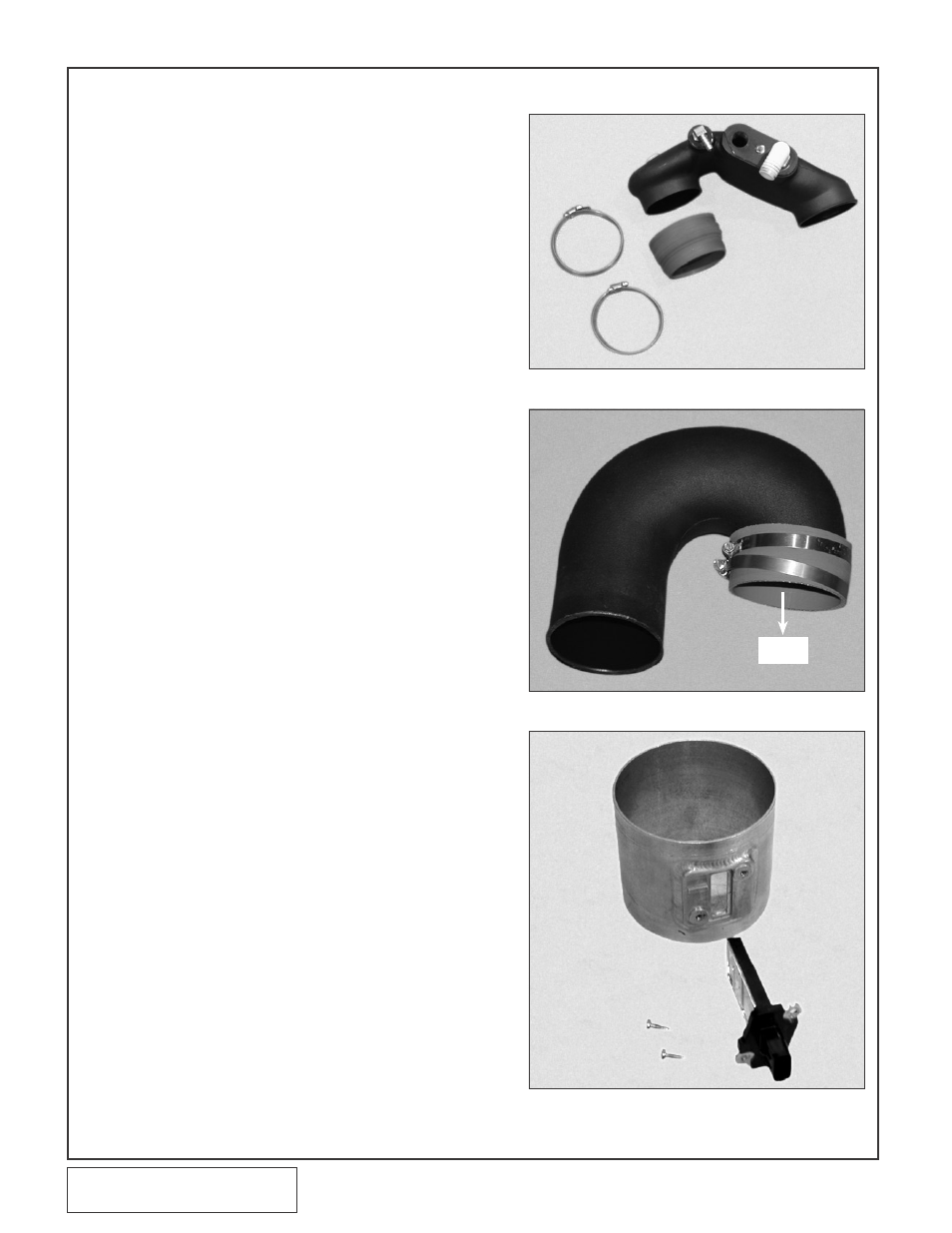

9. AIR INLET ASSEMBLY
Fig. 9-b
Fig. 9-c
Fig. 9-a
TO
MAF
