ENGINE COOLANT RESERVOIR

INSTALLATION (2007 -2008 Models Only),

cont’d

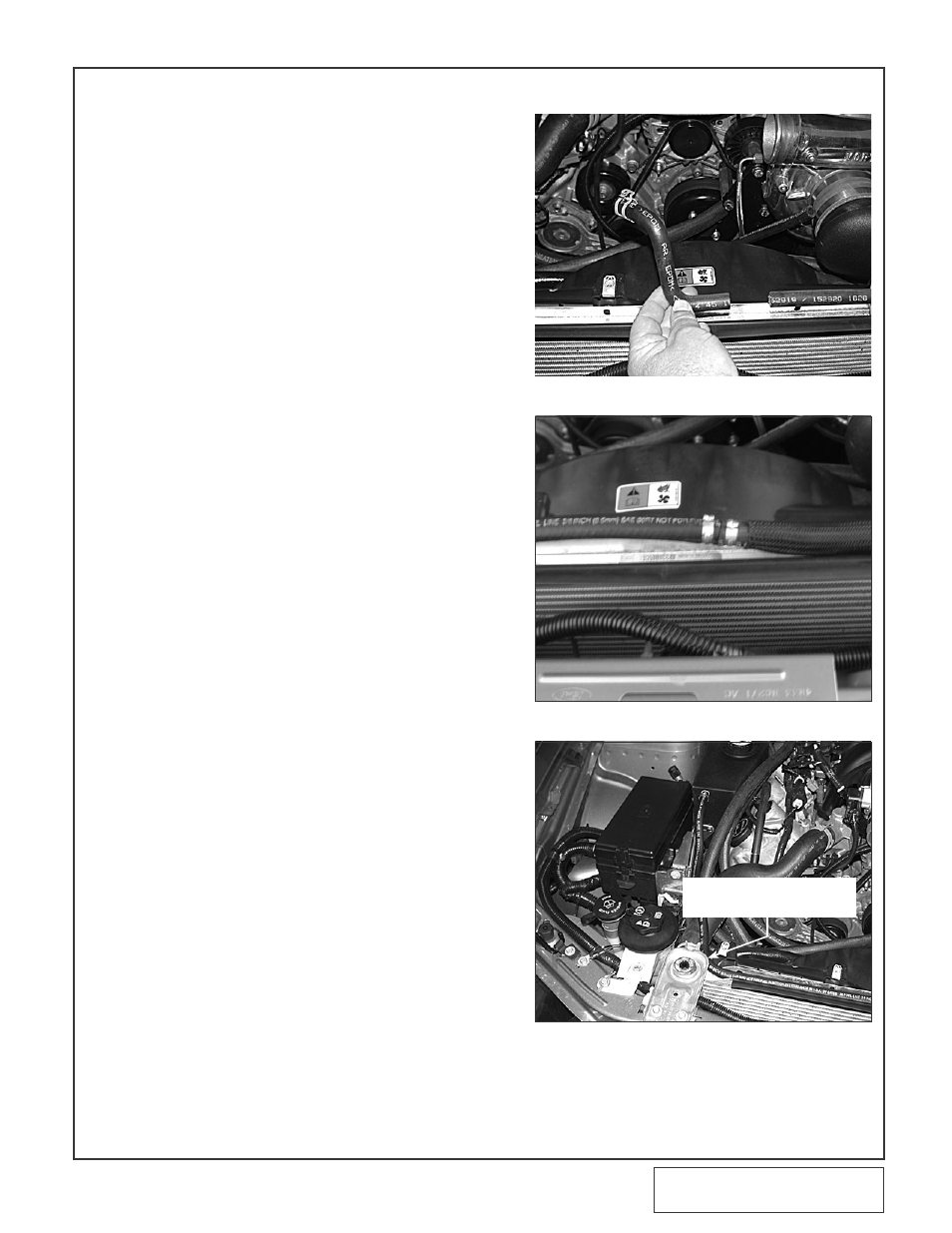

9. Modify the small hose removed from the

factory coolant overflow reservoir. By cut-

ting the “S” bend off the hose end. (See

Fig. 7E-h.)

10. Install a 3/8" union and a #17 stepless

clamp. Secure the clamp. Using a length

of 3/8" (approximately 40" long) hose

that is provided, secure the hose to the

union with a #17 stepless clamp. (See

Fig. 7E-i.)

11. Route the overflow hose across the radi-

ator and under the radiator retaining

bracket to the 1/4"NPT x 3/8" hose barb

fitting in the coolant reservoir securing

with a clamp. (See Fig. 7E-j.)

7. CHARGE AIR COOLER INSTALLATION, cont’d

(H.O. KITS ONLY)

Fig. 7E-i

Fig. 7E-h

Fig. 7E-j

TRIM FAN SHROUD AS

NEEDED

FOR HOSE CLEARANCE
