P/N: 4FU020-610

©2008 Vortech Engineering, LLC

All Rights Reserved, Intl. Copr. Secured

06AUG08 v4.1 05MusV6(4FU..610v4.1)

12

7. CHARGE AIR COOLER INSTALLATION

(H.O. KITS ONLY)

, cont’d

10. Locate assembly 8N104-620. Confirm

that the assembly is complete. Locate

and set aside the "short" 1/2" NPT x 3/4"

x 90° fitting (this fitting has only two barbs

versus the standard three). Later the fit-

ting will be used in a specific location as

specified in step 7-E 11.

11. Attach the provided ring terminal to the

ground wire on the supplied water pump

plug harness. Connect the supplied length

of 16GA wire to the positive wire using

the supplied butt connector. Connect the

water pump harness to the water pump.

12. Locate the supplied water pump (8F001-

403), two 2-3/8" adel clamps, and water

pump mounting bracket. Place the adel

clamps on the water pump. Using the

supplied 1/4-20 hardware, secure the

water pump and clamps to the mounting

bracket. When installing, attach the water

pump ground wire to one of the water

pump mounting clamps using the previ-

ously installed ring terminal. (See Fig.

7B-g.)

13. Attach the pump assembly to the two

8mm x 35mm long bolts previously

installed and secure using the 8mm nuts

and washers provided. (See Fig. 7B-h.)

14. Route the positive wire up towards the

driver’s side valve cover.

15. Locate the ballast resistor plug. Install the

supplied T-tap connector, cut the water

pump positive wire (from the water pump)

for best fit, attach the supplied male

spayed connector and attach to the wire

T-tap connnector. (See Fig., 7B-i.)

16. Cut the water pump positive wire and

install the inline fuse holder and fuse.

Install the wire loom provided and secure

away from heat and moving parts. (See

Fig. 7B-i.)

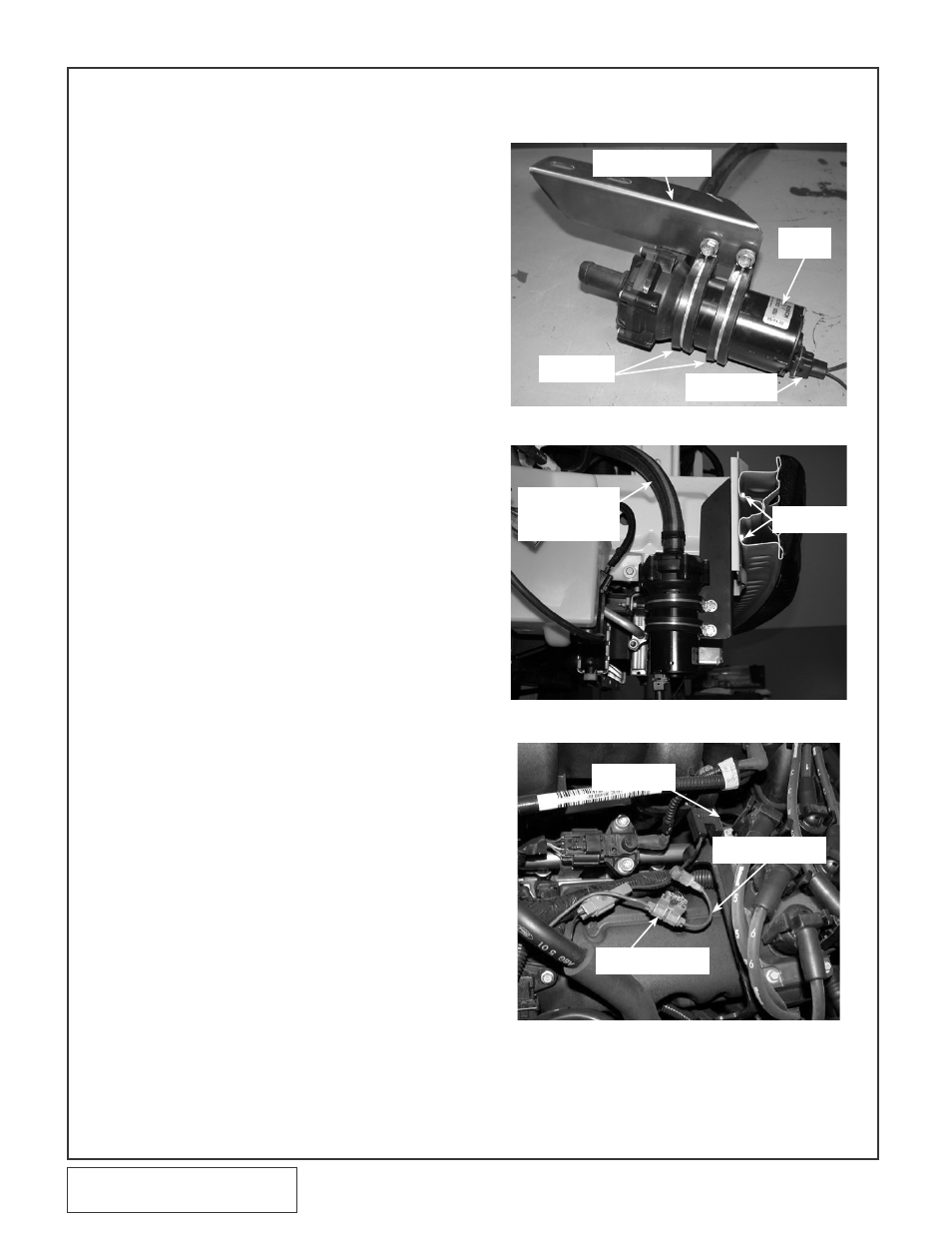

Fig. 7B-g

Fig. 7B-h

MOUNTING

BRACKET

ADEL

CLAMP

PLUG

HARNESS

WATER

PUMP

8mm

HARDWARE

Fig. 7B-i

B.

WATER COOLER ASSEMBLY

INSTALLATION, cont’d

HOSE TO

PASSENGER’S

SIDE SHOCK

TOWER

BALLAST

RESSISTOR

POSITIVE WIRE

TO WATER PUMP

SUPPLIED

FUSE HOLDER
