3. Attach the 3/4" hose (previously installed)
to the straight 1/2"NPT x 3/4" barb at the
bottom of the surge tank reservoir.
Secure with a nylon clamp. (See Fig.
7C-c.)
Fig. 7C-d
Fig. 7C-c
7. CHARGE AIR COOLER INSTALLATION (H.0. Kits Only), cont’d
NOTE: The surge tank is mounted in a
later step.

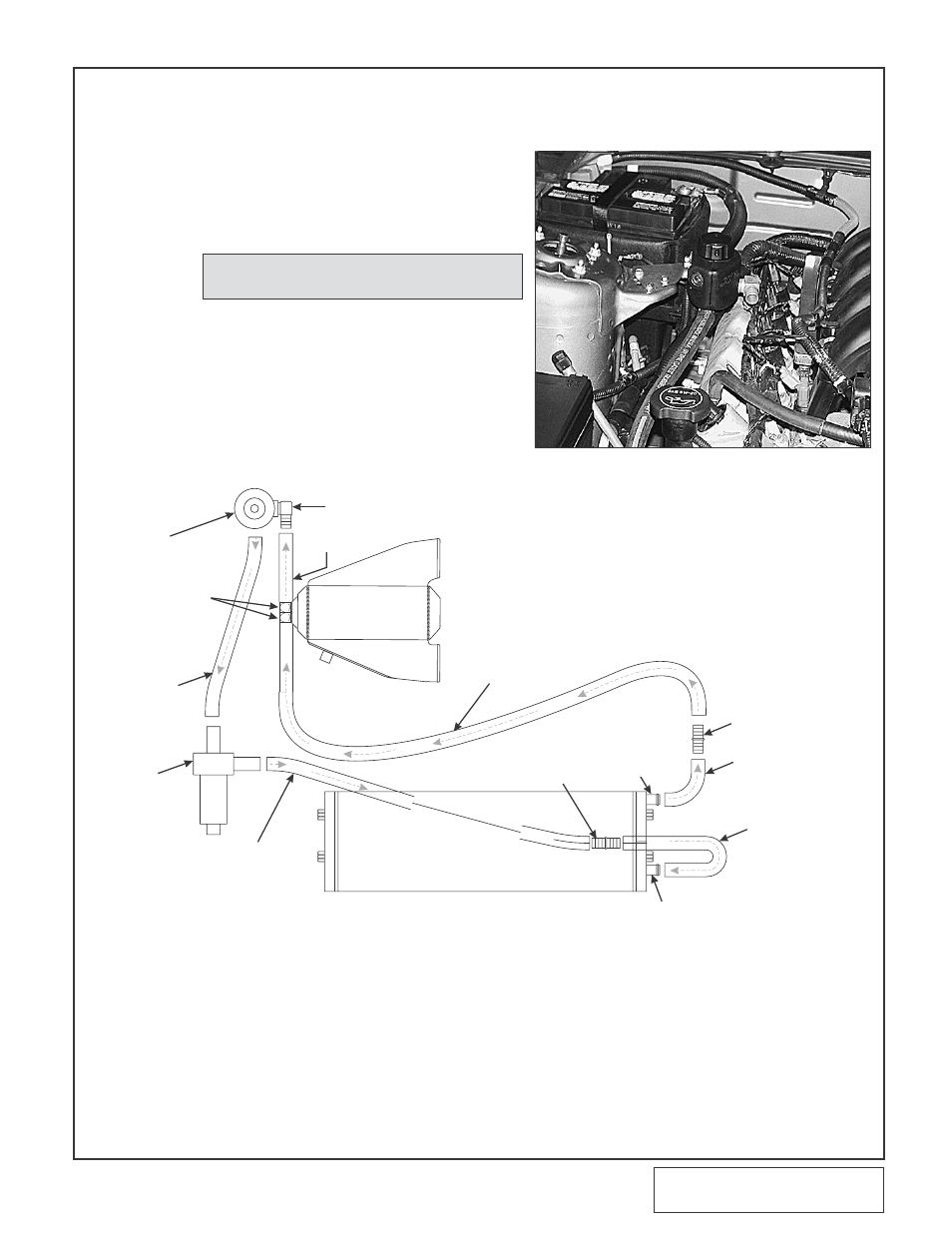

C. SURGE TANK INSTALLATION
SURGE TANK
(8N056-061)
90° 1/2 NPT TO 3/4”
HOSE BARB (7P500-026)
3/4” HOSE (7U038-00)
CUT TO FIT
(APPROX. 17”)
90° 1/2 NPT TO 3/4”
HOSE BARB
(7P500-026)
3/4” HOSE (7U038-00)
CUT TO FIT
(APPROX. 48”)
(8N101-620)
WATER PUMP
(8F001-403)
3/4” HOSE (7U038-00)
CUT TO FIT
(APPROX. 24”)
WATER COOLER
(8N006-020)
3/4” HOSE (7U038-00)
CUT TO FIT
(APPROX. 48”)
3/4” HOSE UNION
BARDED (7P375-075)
3/4 X 90° RUBBER HOSE
(7U038-065)
TOP PORT
ON COOLER
3/4” HOSE UNION
BARDED (7P375-075)
BOTTOM PORT
ON COOLER
3/4 X 150° MOLDED HOSE
(7U038-150)
