Taser Evidence-Sync - Manual (Page 80)

Page 80 of 86
Figure 111
10. Click the ON button to turn the filter on.

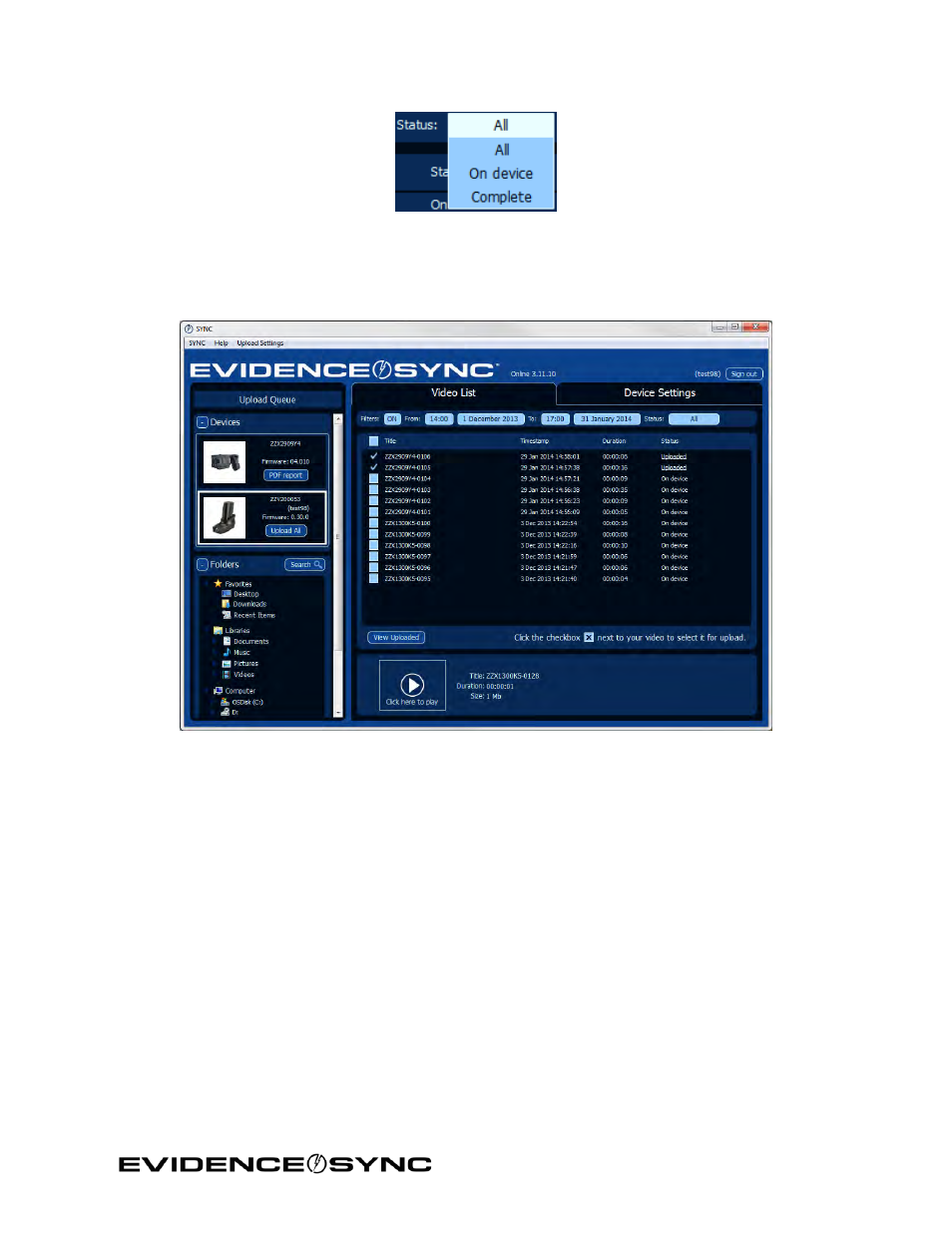

The information displayed is narrowed to your requirements. In Figure 112, the
information displayed is within a specified date and time range.
Figure 112
11. Keep the recorder connected to the computer during this procedure.
12. After you are done looking at the records, unplug the cable from the recorder. After
unplugging the cable from the recorder, remember to replace the dataport plug on the
recorder to prevent damage from any debris or moisture.
Filtering AXON Videos
Note: This procedure shows the online mode and includes the login steps. Except login, the
steps will be the same in offline and MDT modes.
1. Connect the camera to your computer with the 2.5 mm to USB cable.
2. Click
Start and select All Programs.
3. Click SYNC and select SYNC.
4. Type your login information and click Login.
Figure 113–Figure 116 Display AXON video logs and options for filtering them.
