RVC 2-33 CD &
Using the RVC
Version 01/2009, Rev. 1.21 of 25/11/2013 - sb 45
Translation of the original operating manual

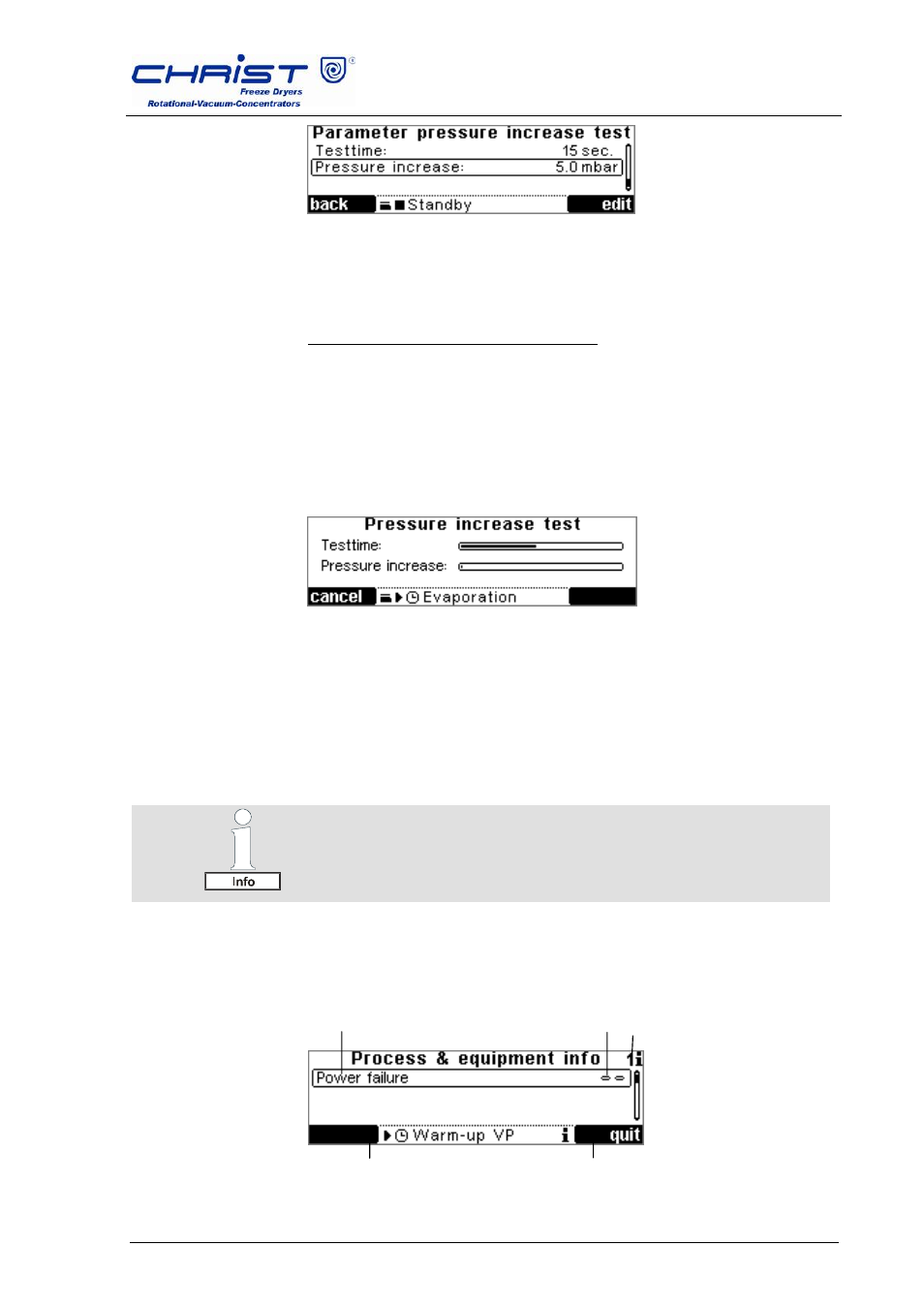

Fig. 6.28: Entering the parameters for a pressure increase test
Enter the set values and confirm.
To perform the pressure increase test:
Select "Special functions" from the main menu.
Open the menu "Pressure increase test" and select "Start
pressure increase test". The pressure increase test will be
performed.
The test time progress and the measured pressure increase are
displayed in a graphical form.
Fig. 6.29: Graphical presentation of the pressure increase test
When the test is finished, an information window pops up and shows
the result of the pressure increase test.
6.3.5.4 Process and Equipment Information System
The "Process & Equipment Information System" informs the user
about any error, process, or system messages.
A detailed list of all messages can be found in chapter 1
"Malfunctions and Error Correction".
The process and equipment information window is displayed whenever
the CDplus control system generates a new information message. If
the user is working in a menu, the process & equipment information
window will not be displayed until the user exits the main menu.
1 Message
2 Status of the
Information
3 Number of
messages pending
4 Function key for
quitting the menu
5 Function key for
acknowledging the
message
Fig. 6.30: Process & equipment info window
1 2 3
4 5
