RVC 2-25 CD &
Using the RVC
30 Version 01/2009, Rev. 1.21 of 25/11/2013 - sb
Translation of the original operating manual
6.2.3 Installation of Swing-out Rotors
Push the loaded rotor onto the rotor shaft until it reaches the
stop.
Follow the safety instructions and hazard warnings in chapter 3!
6.2.3.1 Tubes
Only use inserts that are suitable for the rotor (see 11.2 "Rotor
Program").
Load the tubes outside of the rotational vacuum concentrator.
Solvents in the buckets or rotor blocks cause corrosion.
Fill the tubes carefully and arrange them according to their
weight.
Follow the safety instructions and hazard warnings in chapter 3!
6.2.3.2 Rotor blocks
Always load the rotor blocks symmetrically with the same accessories
and fill to avoid imbalance.
correct incorrect

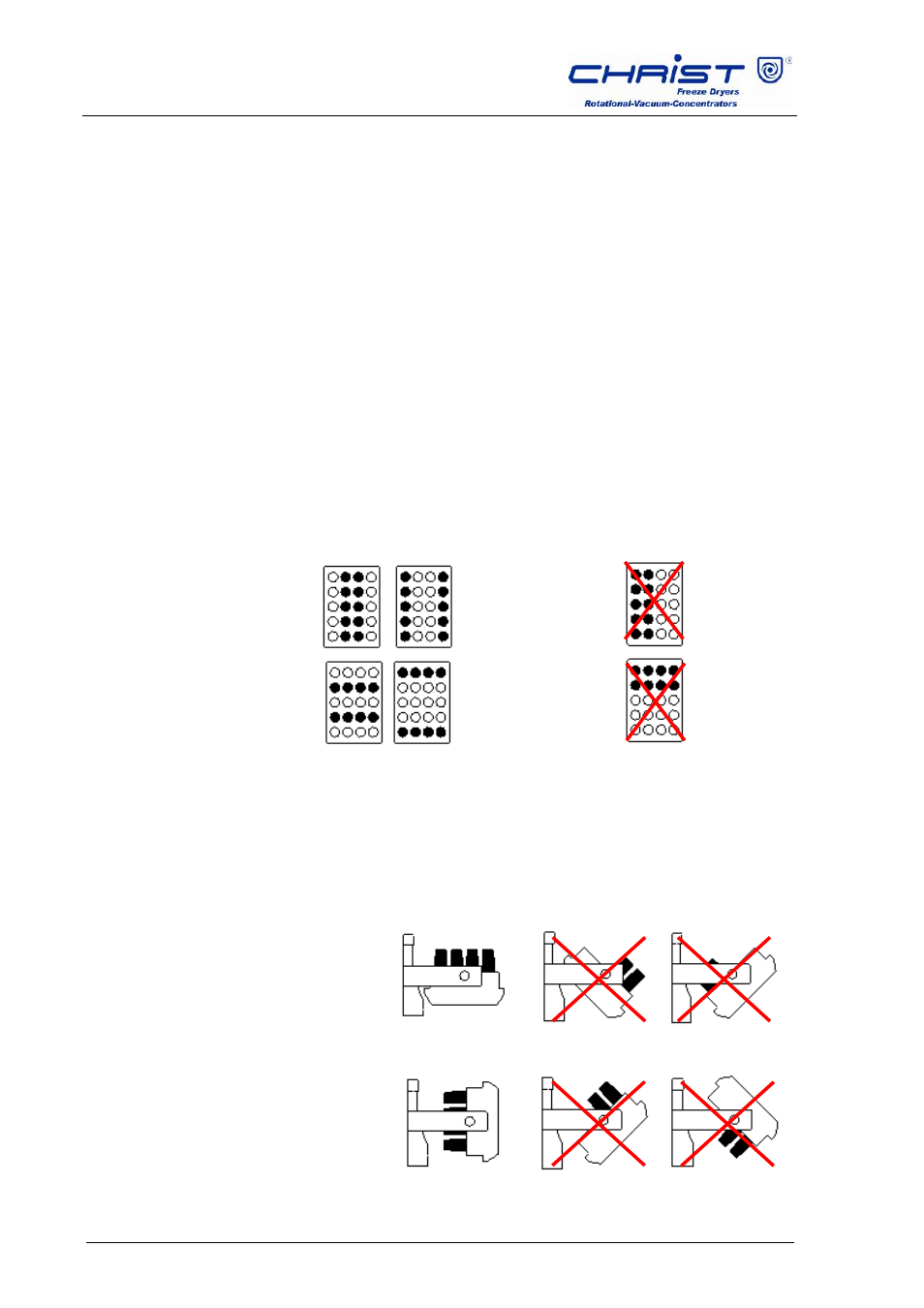

Fig. 6.2: Loading of rotor blocks
6.2.3.3 Buckets
Load each bucket symmetrically to its pivotal point to ensure
swinging to 90° under rotation.
correct incorrect
at a standstill
under rotation
Fig. 6.3: symmetrical loading of the buckets
