RVC 2-33 CD
&
Using the RVC
Version 01/2009, Rev. 1.21 of 25/11/2013 - sb
35
Translation of the original operating manual
Active phases
Open lid
Warm Up
Evaporation manual
Evaporation program
Info icon
The info icon flashes every second to draw the user's attention to
error messages, process messages, or general information
concerning the process or the unit.
The messages can be displayed in the process and equipment
information window (see 6.3.5.4 "Process & Equipment
Information System").
6.3.2.3
Assignment of the Function Keys
The function of softkeys depends on the menus and operating states
of the installation. The current key function is displayed in the black
field next to the key.

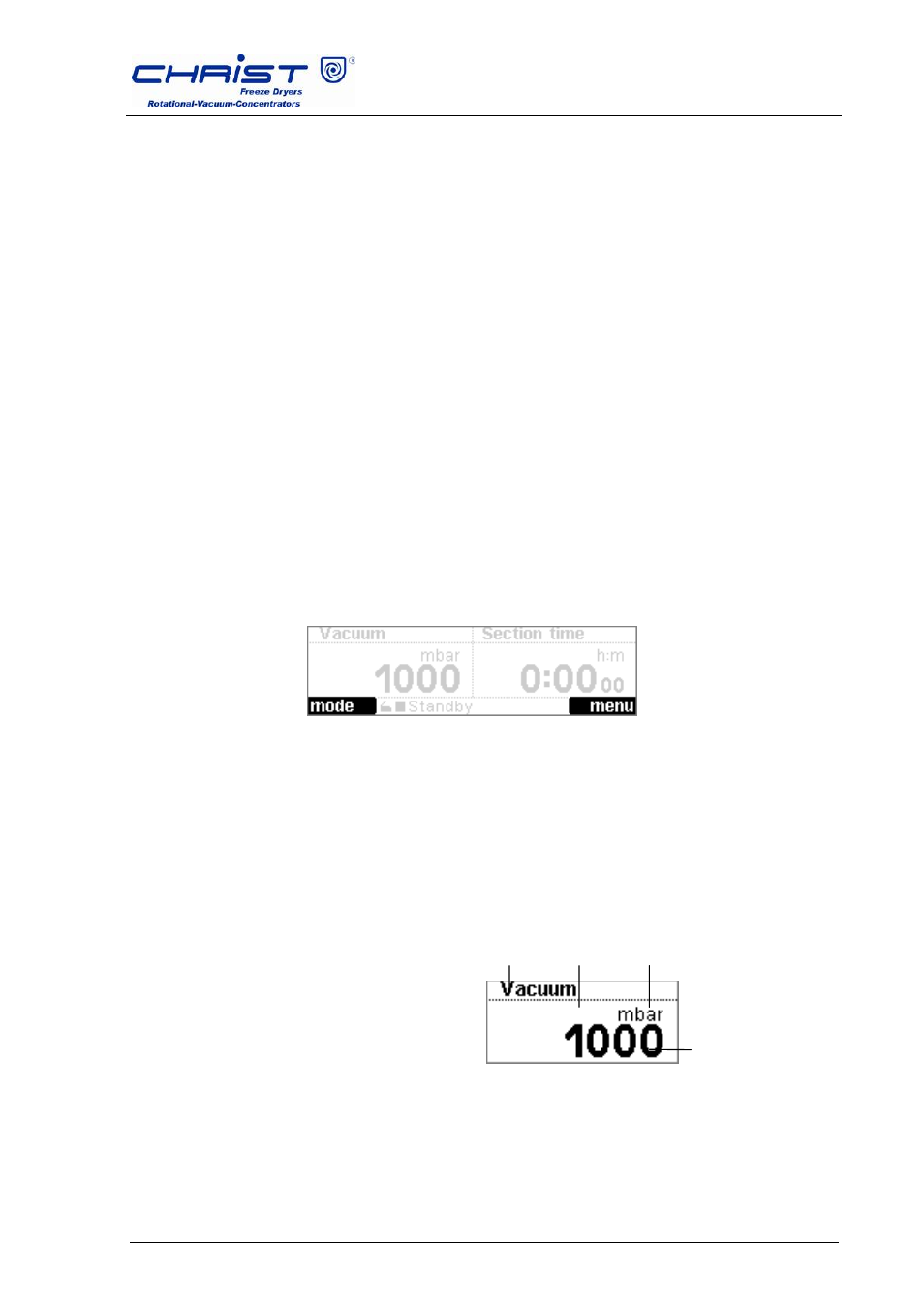

Fig. 6.6: Display of the assignment of the function keys;
here: left key "mode", right key "menu"
6.3.3 Values Window
The values window is displayed after the initialization of the CD
plus
control system. It is divided into two areas.
Each value window is structured as follows:
1 Measuring channel
2 Set value
3 Unit of the measured
value
4
Actual value
Fig. 6.7: Value window
Set values are only shown in the run mode.
1
2
3
4
