RVC 2-33 CD &
Design of the Rotational Vacuum Concentrator
Version 01/2009, Rev. 1.21 of 25/11/2013 - sb 11
Translation of the original operating manual
2 Design of the Rotational Vacuum Concentrator

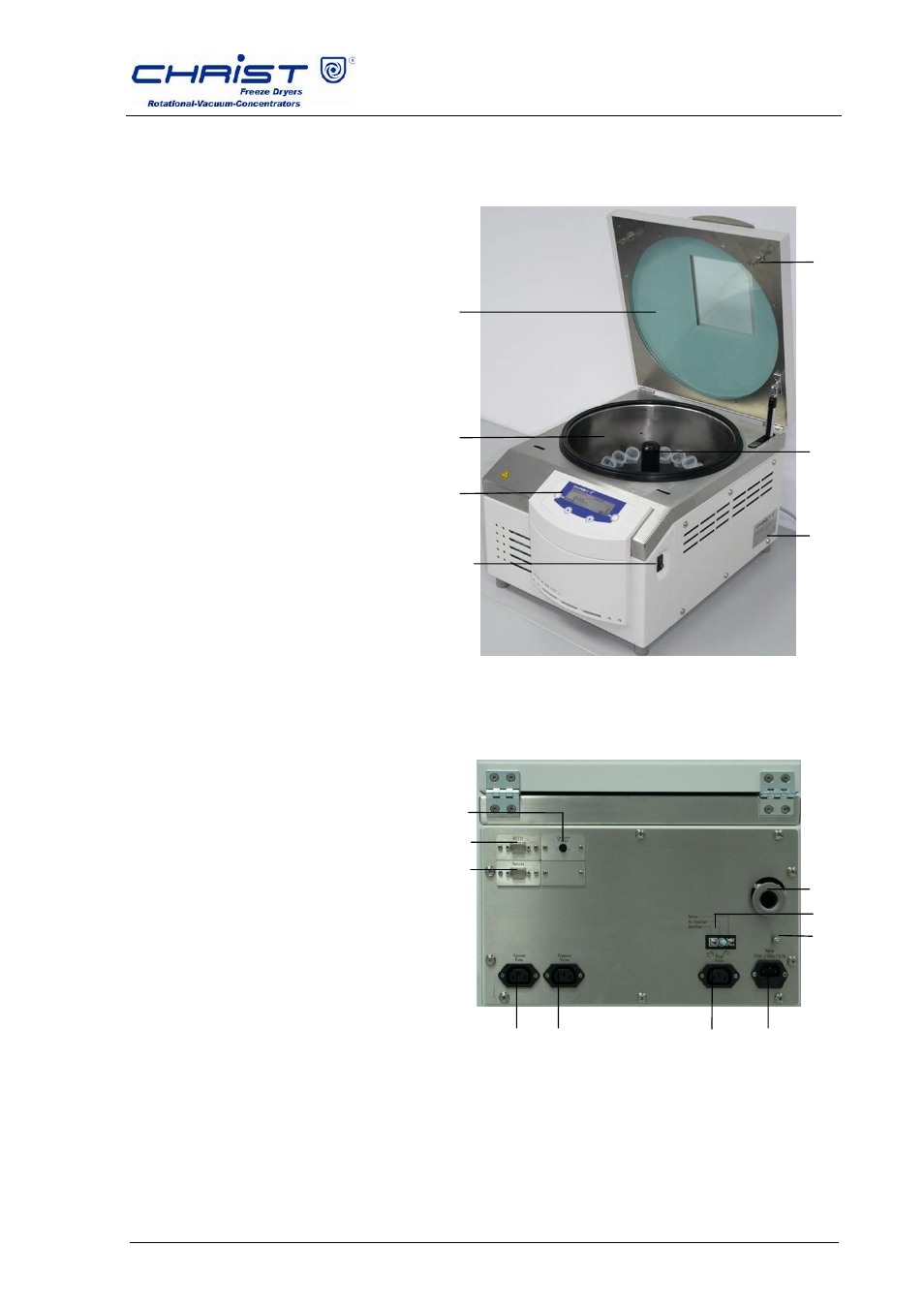

2.1 Overview
1 Lid
2 Rotor chamber
3 Control panel (see 6.3.1)
4 Mains power switch
5 Lid lock device
6 Rotor shaft
7 Name plate (see 2.2)
Fig. 2.1: Total view of the RVC 2-33 CD
plus
1 Electrical vacuum measuring
sensor connection (please
order vacuum sensor
separately)
2 Option: Serial Interface
3 Option: Remote Interface
4 Power supply connection of
the vacuum pump
5 Power supply connection of
the pressure control valve
6 Power supply connection of
the stop valve
7 Mains connection and
mains fuse protection
(see 5.4.2)
8 Equipotential bonding screw
9 Option: Valve block
(see 5.4.6)
10 Vacuum connection
Fig. 2.2: Rear view of the RVC 2-33 CD
plus
1
2
3
4
5
6
7
1
2
3
4 5 6 7
8
9
10
